VOLKSWAGEN - Antilock Brake System - 2005 |
|
Que es un Diagrama?, para que sirve un Diagrama electrico automotriz?.
En Mecanica: |
| Podemos describir un Diagrama, como: Grafica que representa la relacion entre los diferentes componentes de un conjunto, o sistema electrico, permitiendonos ubicar estos componentes dentro de un circuito. De esta manera se facilita el estudio y el analisis de un problema; y su posible solucion |
 |
| VOLKSWAGEN 2005 - Circuito Electrico - Sistema de Frenos Antiderrapantes 2005 |
| PASSAT W/O TRACTION CONTROL | |
| 1.8L 4 CIL. | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |
| PASSAT W/ TRACTION CONTROL W/ 4 MOTION | |

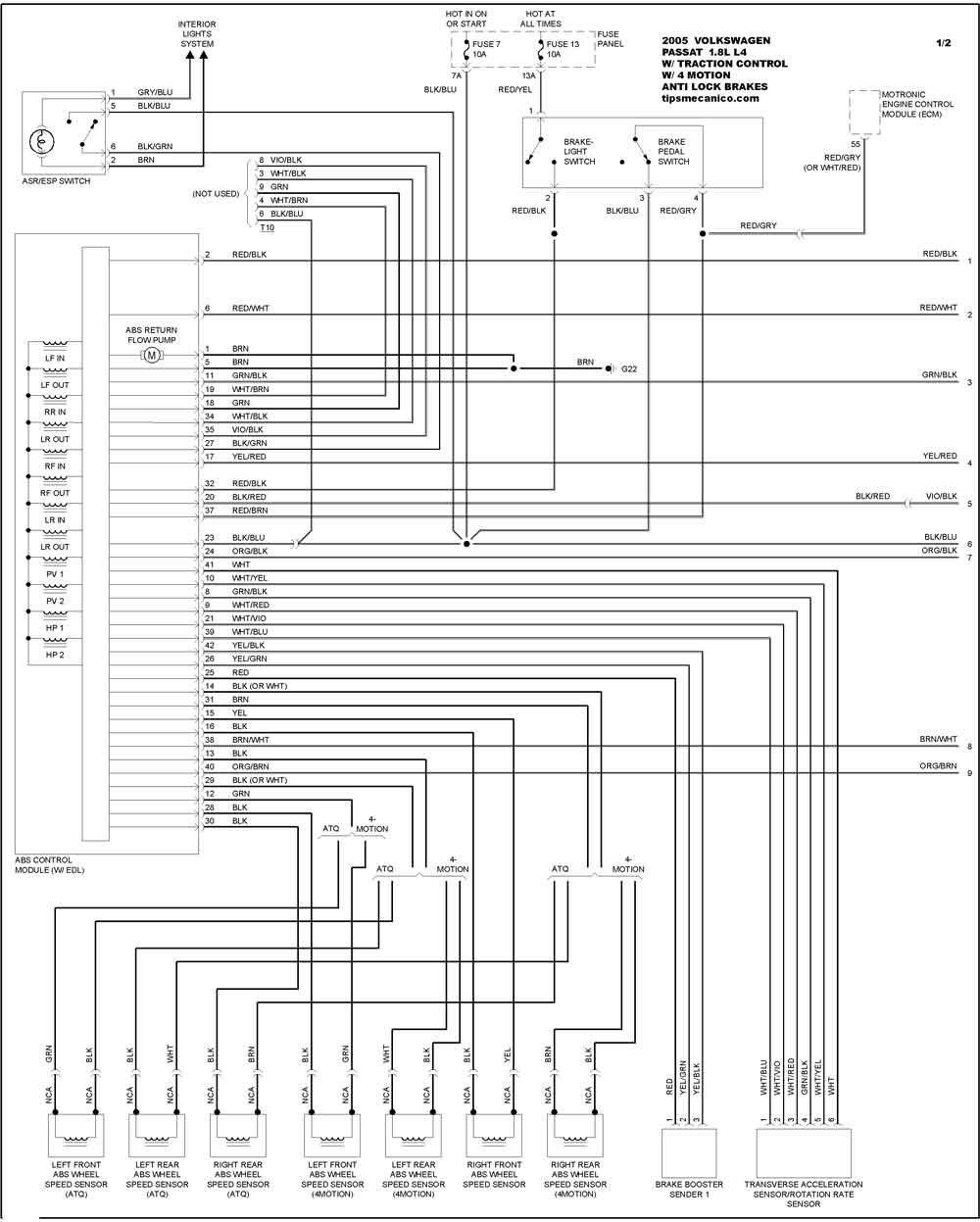

| 1.8L 4 CIL. 1/2 | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |

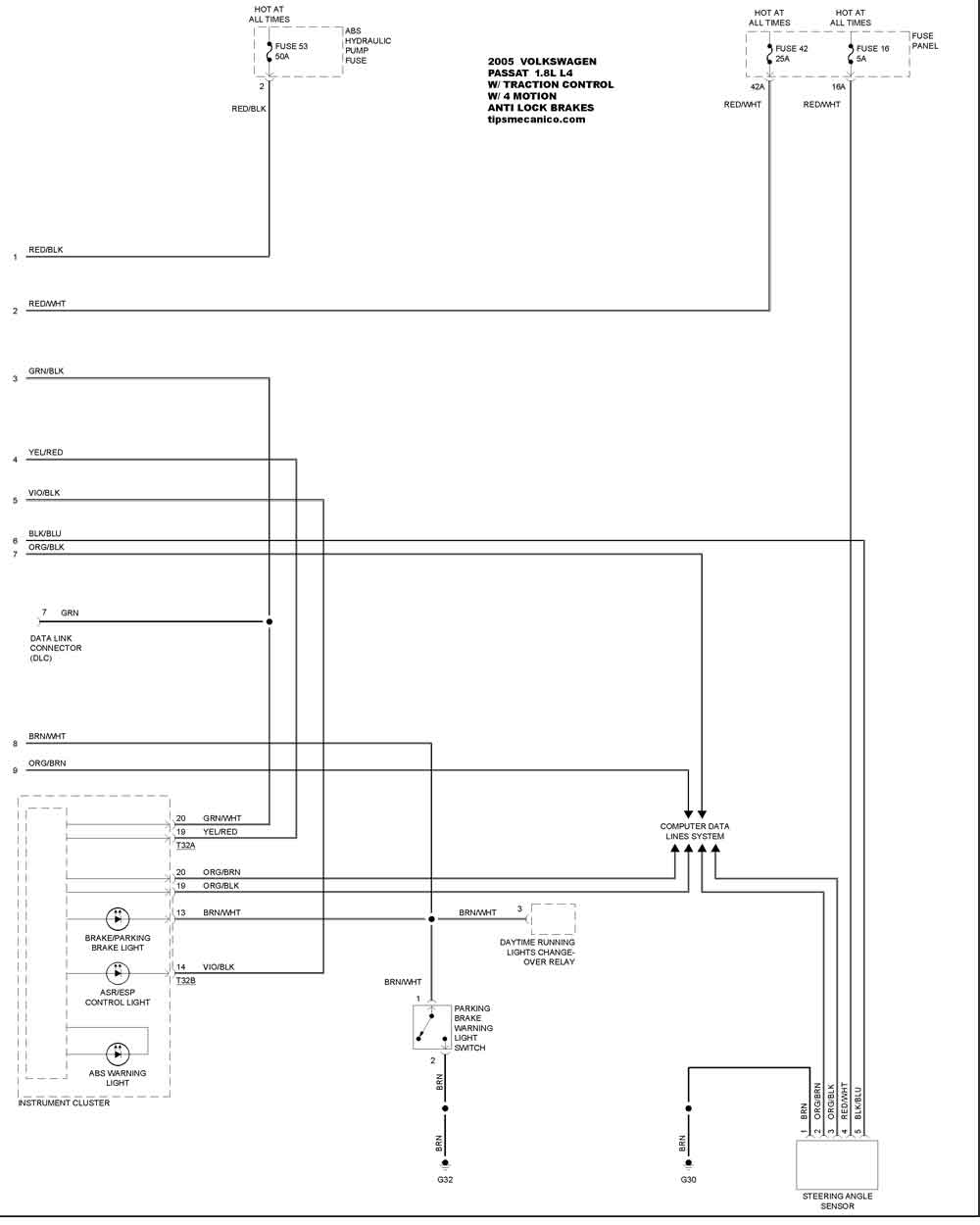

| 1.8L 4 CIL. 2/2 | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |
| PASSAT W/ TRACTION CONTROL W/ FWD | |
| 1.8L 4 CIL. | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |
| PASSAT DIESEL W/O TRACTION CONTROL | |
| 2.0L 4 CIL. | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |
| PASSAT DIESEL W/ TRACTION CONTROL W/ 4 MOTION | |
| 2.0L 4 CIL. 1/2 | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |
| 2.0L 4 CIL. 2/2 | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |
| PASSAT W/ TRACTION CONTROL W/FWD | |
| 2.0L 4 CIL. | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |
| PASSAT DIESEL W/O TRACTION CONTROL | |
| 2.8L 6 CIL. | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |
| PASSAT W/ TRACTION CONTROL W/ 4 MOTION | |
| 2.8L 6 CIL. 1/2 | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |
| 2.8L 6 CIL. 2/2 | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |
| PASSAT W/ TRACTION CONTROL W/ FWD | |
| 2.8L 6 CIL. | DIAGRAMA ELECTRICO ANTI LOCK BRAKES |
