| DIAGRAMAS - HYBRID BATTERY CONNECTORS - NISSAN 2010 - Mecanica Automotriz - INDICE |
Diagramas NISSAN : Altima Hybrid System: - Esquemas - Graphics 2010 - |
| Diagrama - Alternador / Bateria y conexiones . Vehiculos
NISSAN ALTIMA HYBRID 2010 En estos diagramas se describen los circuitos que conectan y activan el funcionamiento del Sistema Hybrid - Connectors |
 |
| Los Diagramas, listados abajo, se refieren unicamente al Circuito electrico que involucra: El Sistema Hibrid - NISSAN ALTMA 2010 |
| ALTIMA : HYBRID BATTERY SYSTEM CONNECTORS | |

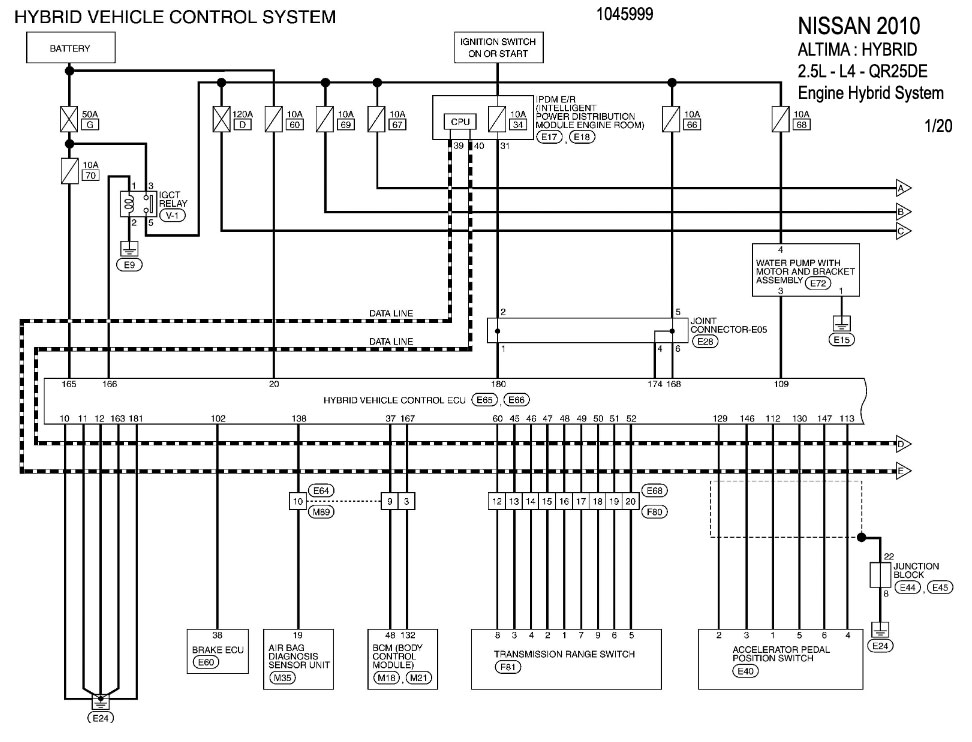

| 2.5L - 4 Cil. - QR25DE - 1/20 | DIAGRAMA CONTROL SYSTEM |

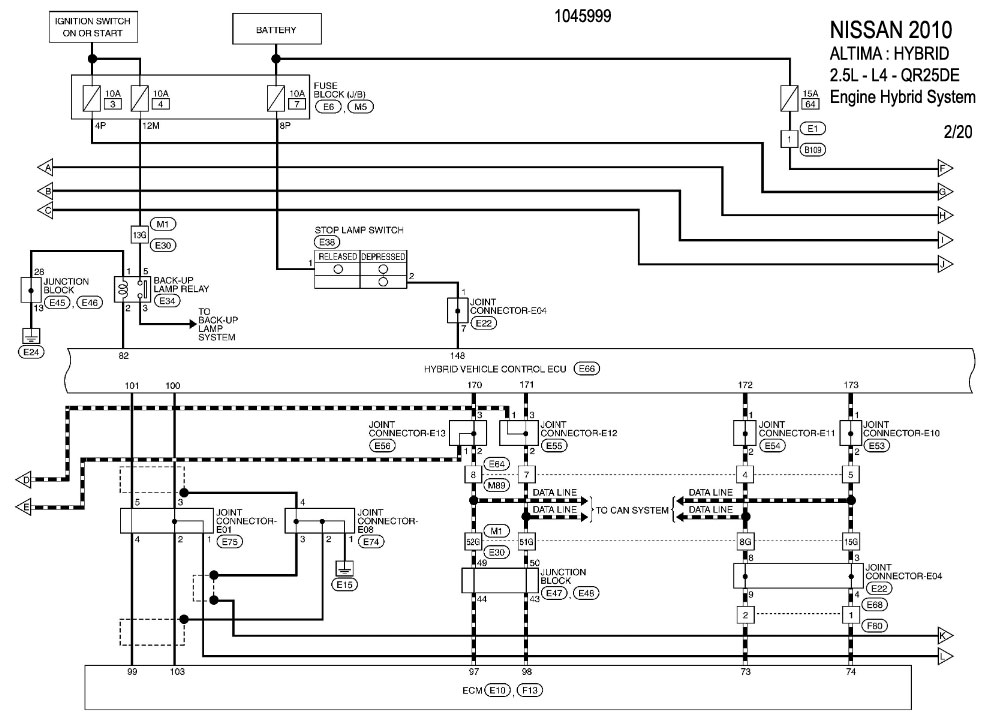

| 2.5L - 4 Cil. - QR25DE - 2/20 | DIAGRAMA SYSTEM CONNECTORS |

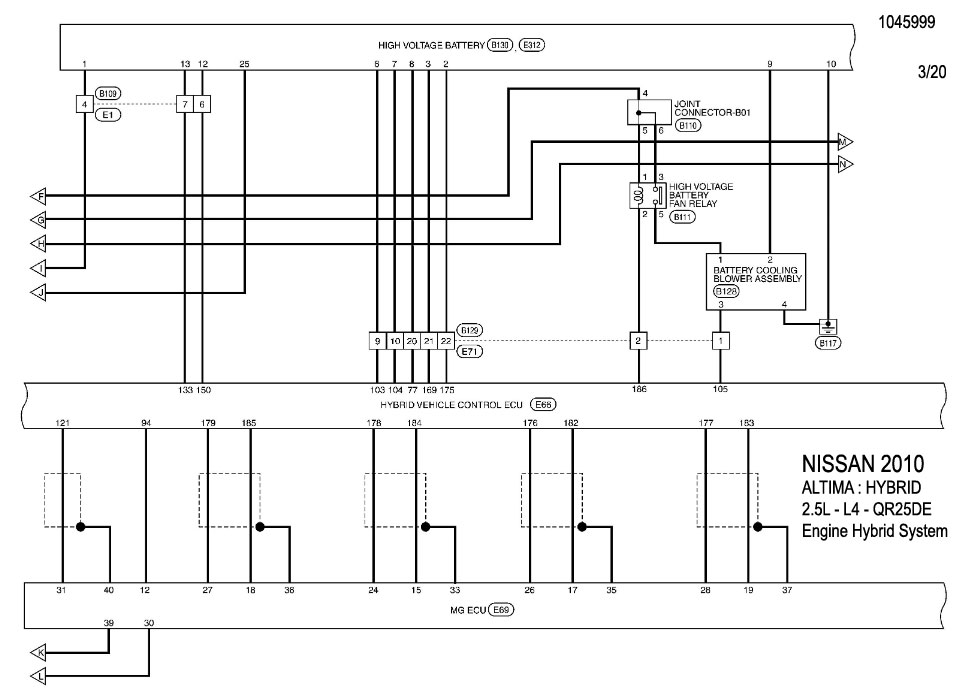

| 2.5L - 4 Cil. - QR25DE - 3/20 | DIAGRAMA SYSTEM CONNECTORS |

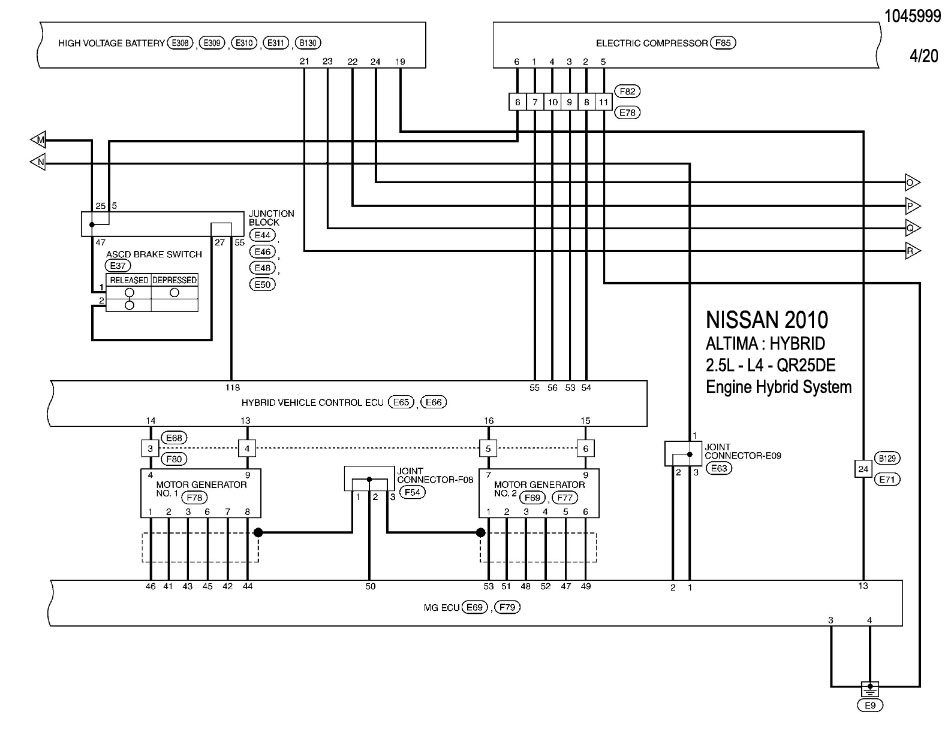

| 2.5L - 4 Cil. - QR25DE - 4/20 | DIAGRAMA SYSTEM CONNECTORS |

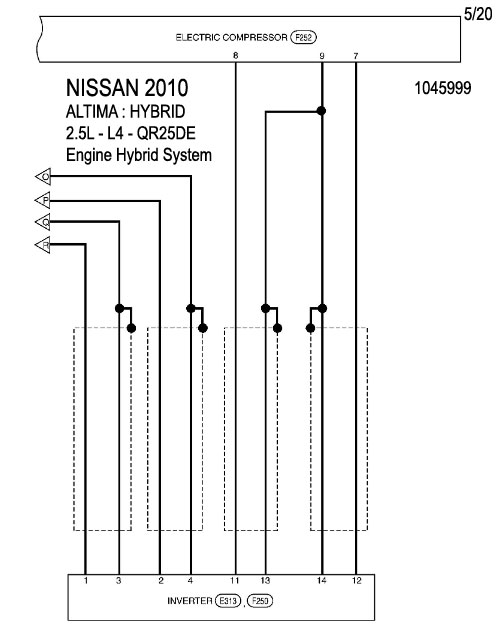

| 2.5L - 4 Cil. - QR25DE - 5/20 | DIAGRAMA SYSTEM CONNECTORS |

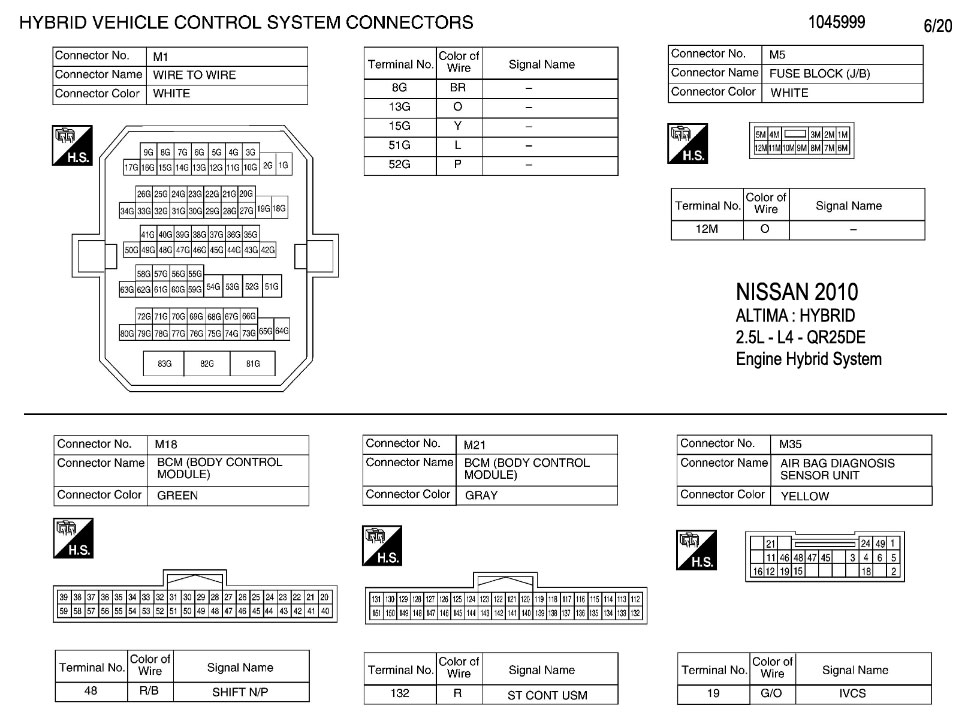

| 2.5L - 4 Cil. - QR25DE - 6/20 | DIAGRAMA SYSTEM CONNECTORS |

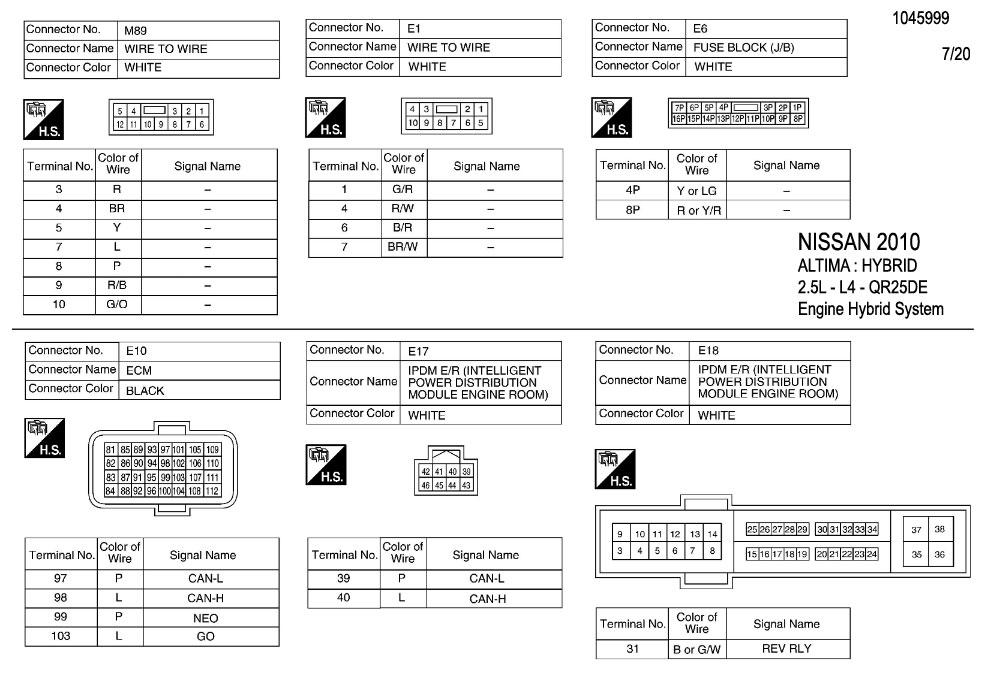

| 2.5L - 4 Cil. - QR25DE - 7/20 | DIAGRAMA SYSTEM CONNECTORS |

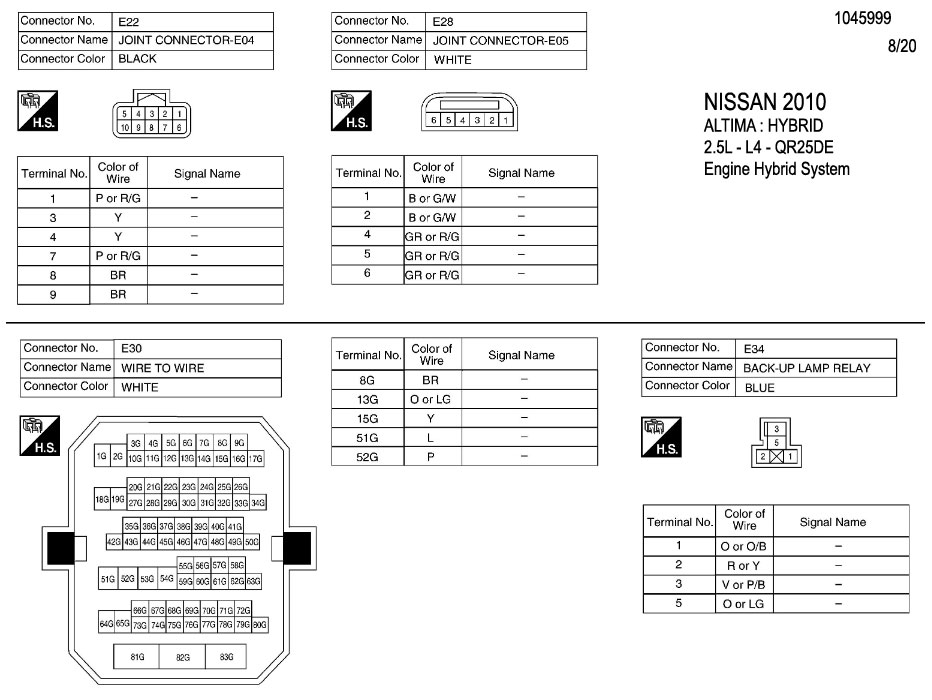

| 2.5L - 4 Cil. - QR25DE - 8/20 | DIAGRAMA SYSTEM CONNECTORS |

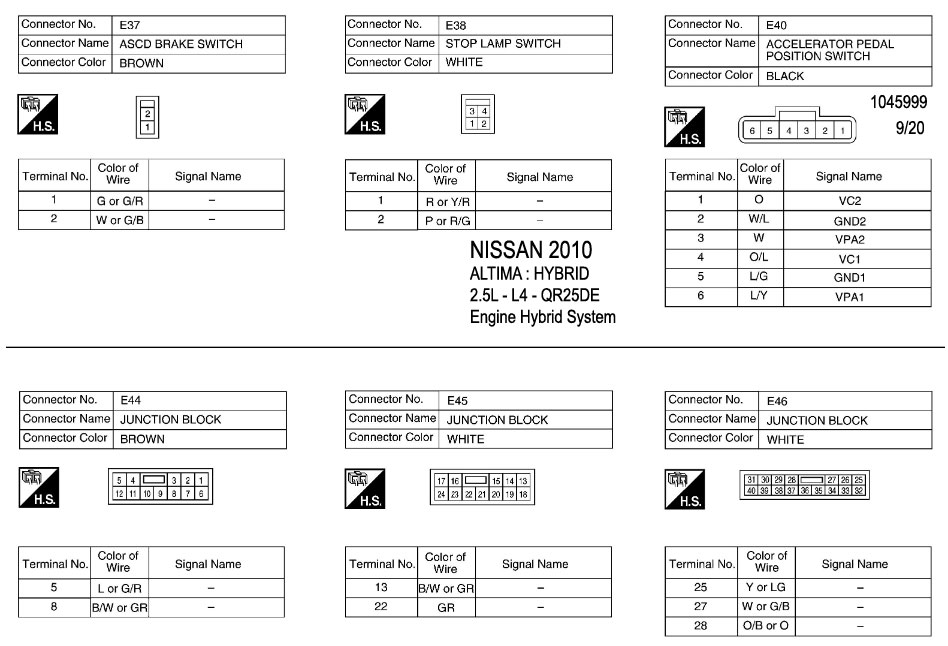

| 2.5L - 4 Cil. - QR25DE - 9/20 | DIAGRAMA SYSTEM CONNECTORS |

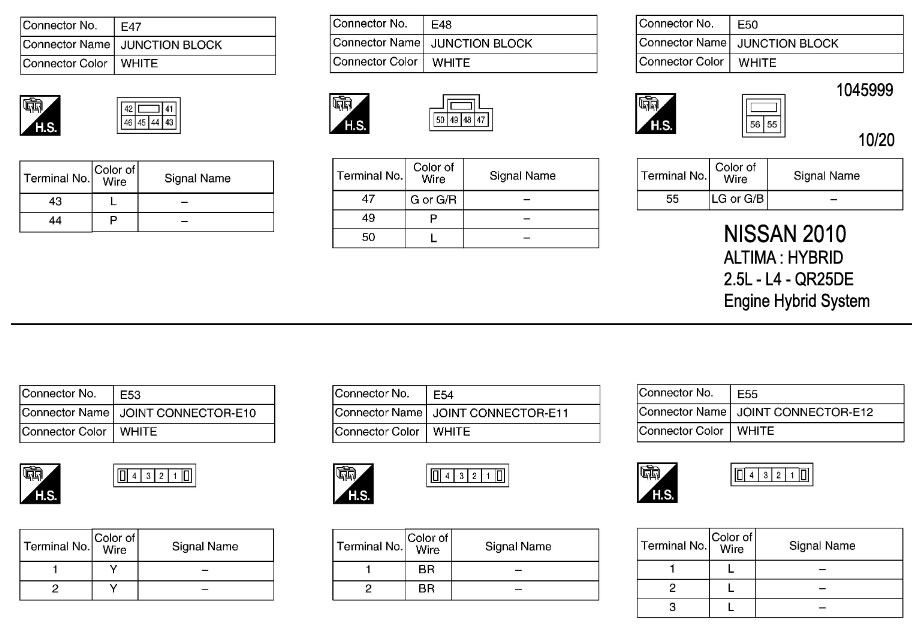

| 2.5L - 4 Cil. - QR25DE - 10/20 | DIAGRAMA SYSTEM CONNECTORS |

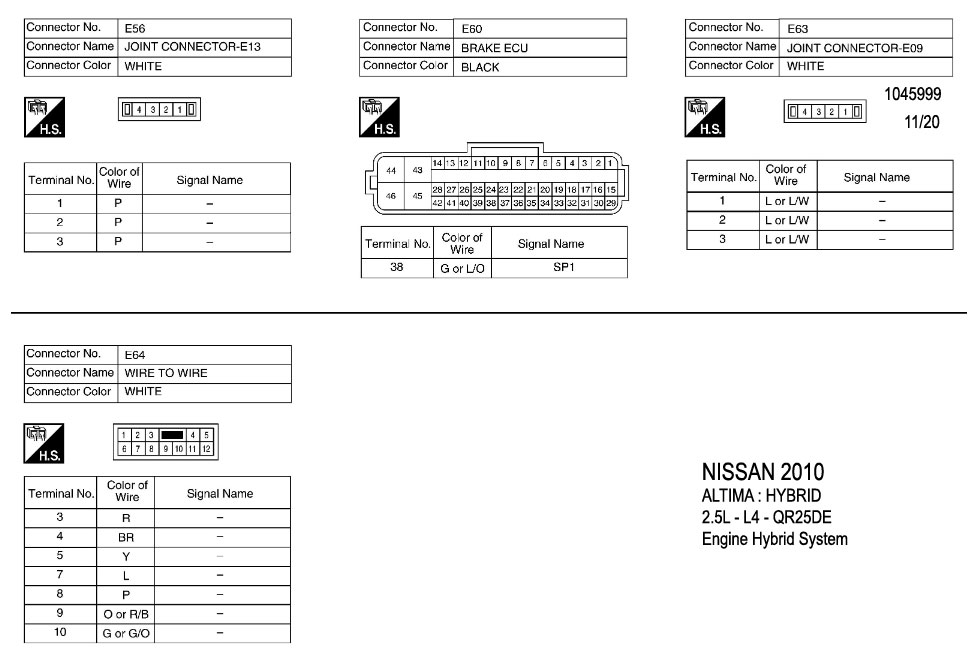

| 2.5L - 4 Cil. - QR25DE - 11/20 | DIAGRAMA SYSTEM CONNECTORS |

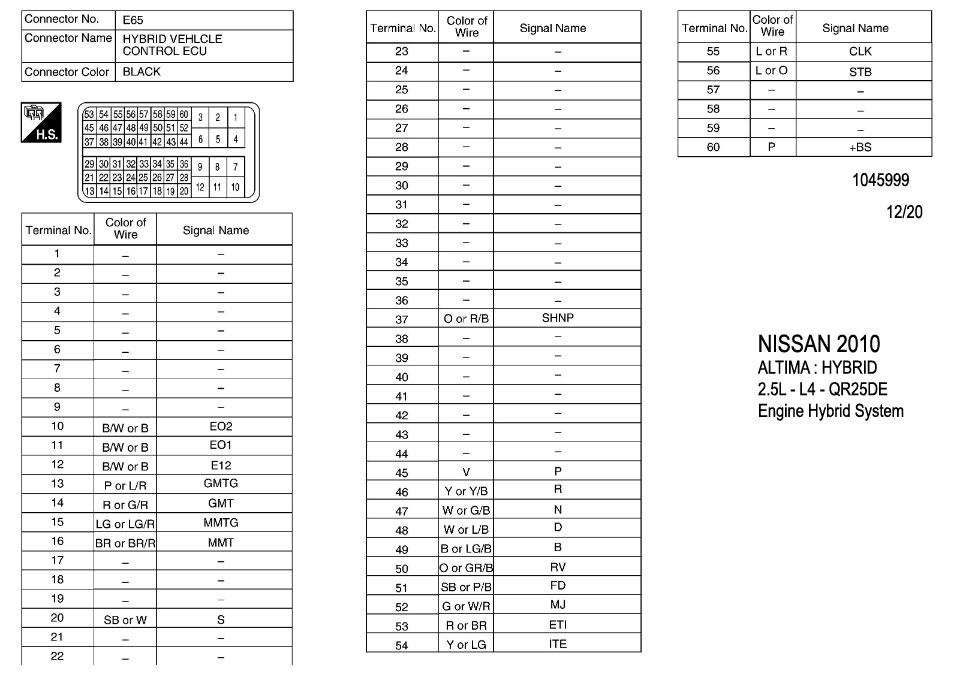

| 2.5L - 4 Cil. - QR25DE - 12/20 | DIAGRAMA SYSTEM CONNECTORS |

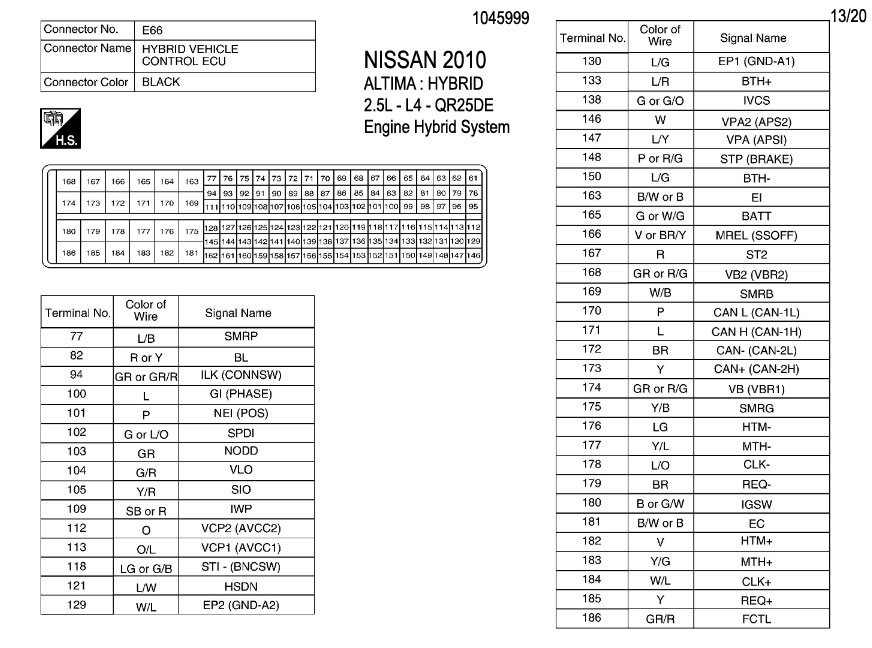

| 2.5L - 4 Cil. - QR25DE - 13/20 | DIAGRAMA SYSTEM CONNECTORS |

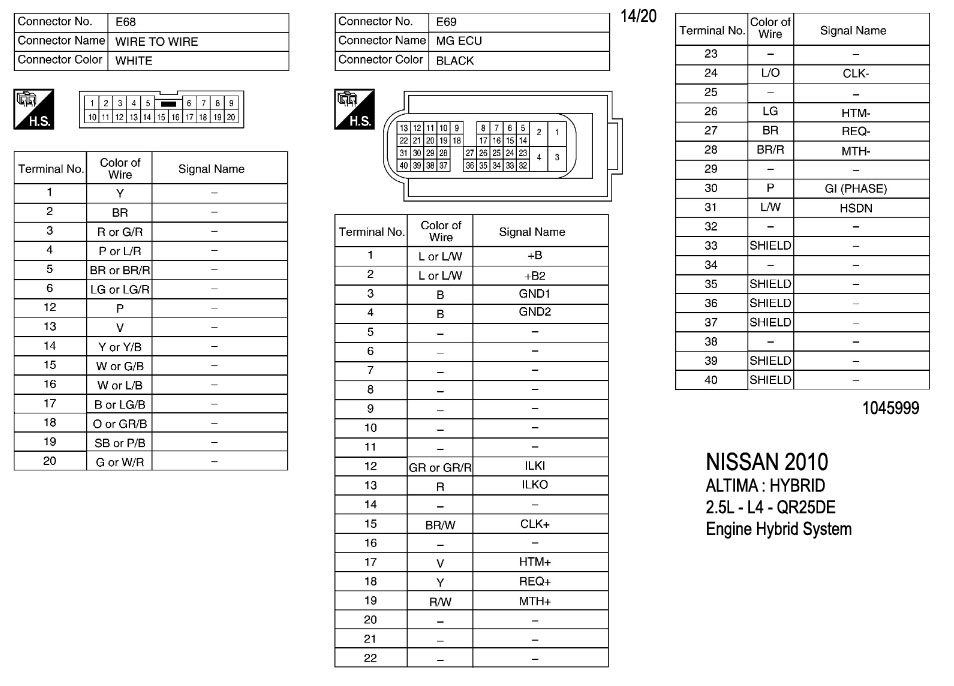

| 2.5L - 4 Cil. - QR25DE - 14/20 | DIAGRAMA SYSTEM CONNECTORS |

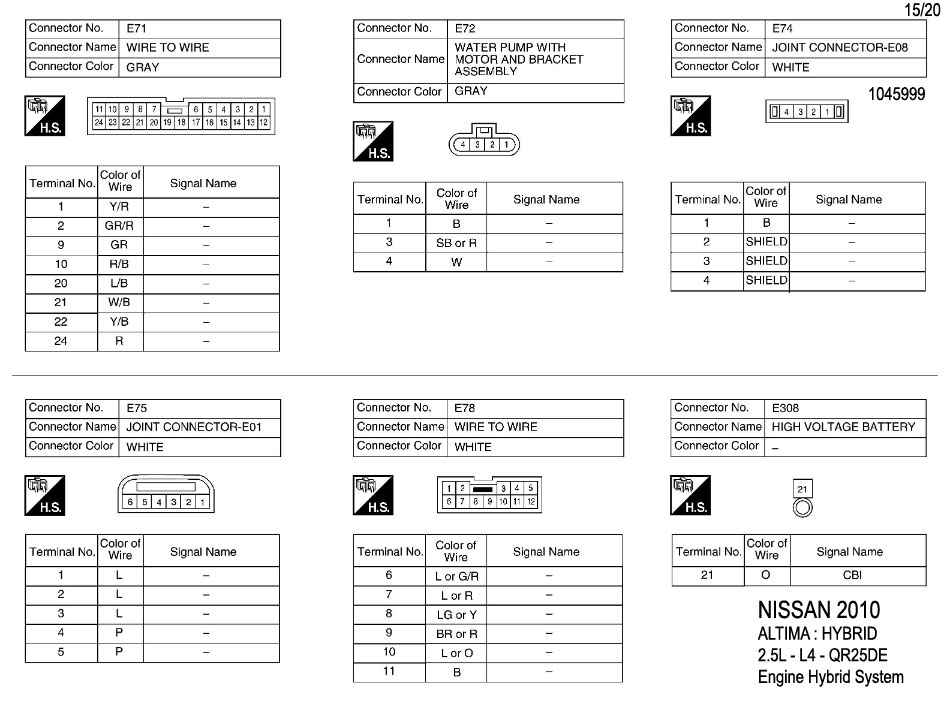

| 2.5L - 4 Cil. - QR25DE - 15/20 | DIAGRAMA SYSTEM CONNECTORS |

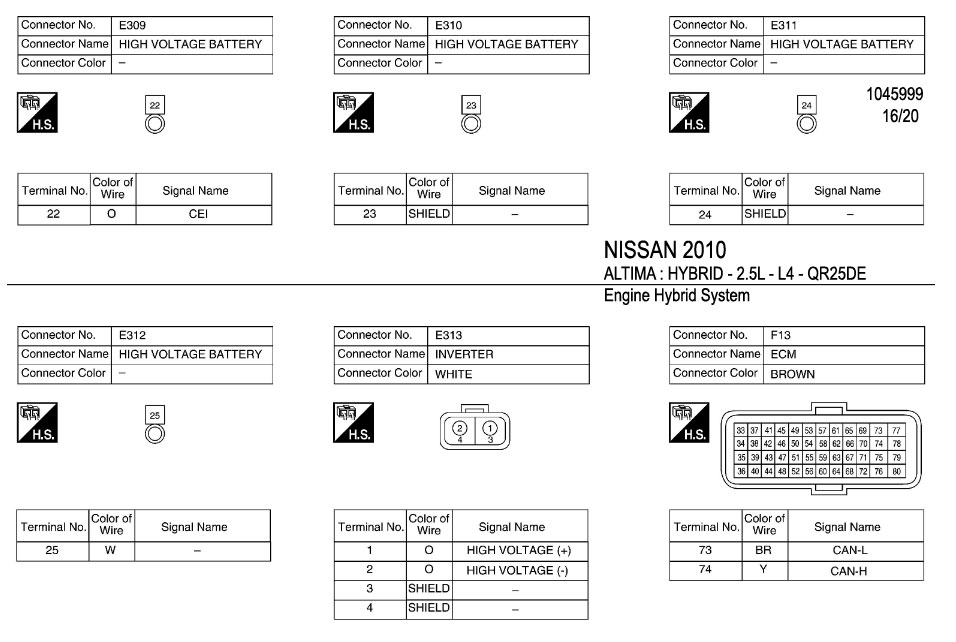

| 2.5L - 4 Cil. - QR25DE - 16/20 | DIAGRAMA SYSTEM CONNECTORS |

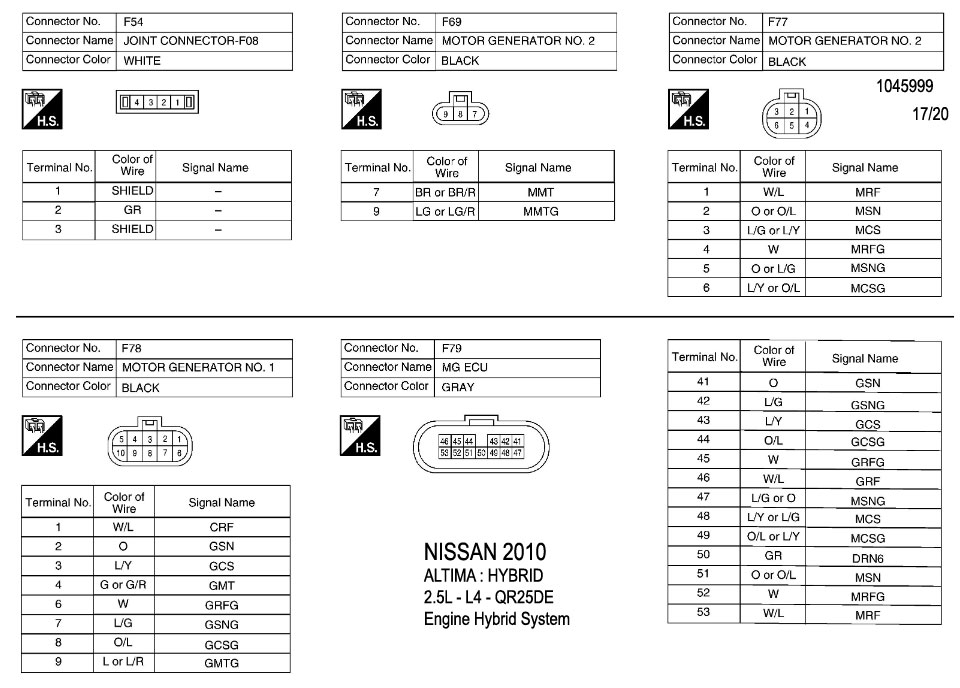

| 2.5L - 4 Cil. - QR25DE - 17/20 | DIAGRAMA SYSTEM CONNECTORS |

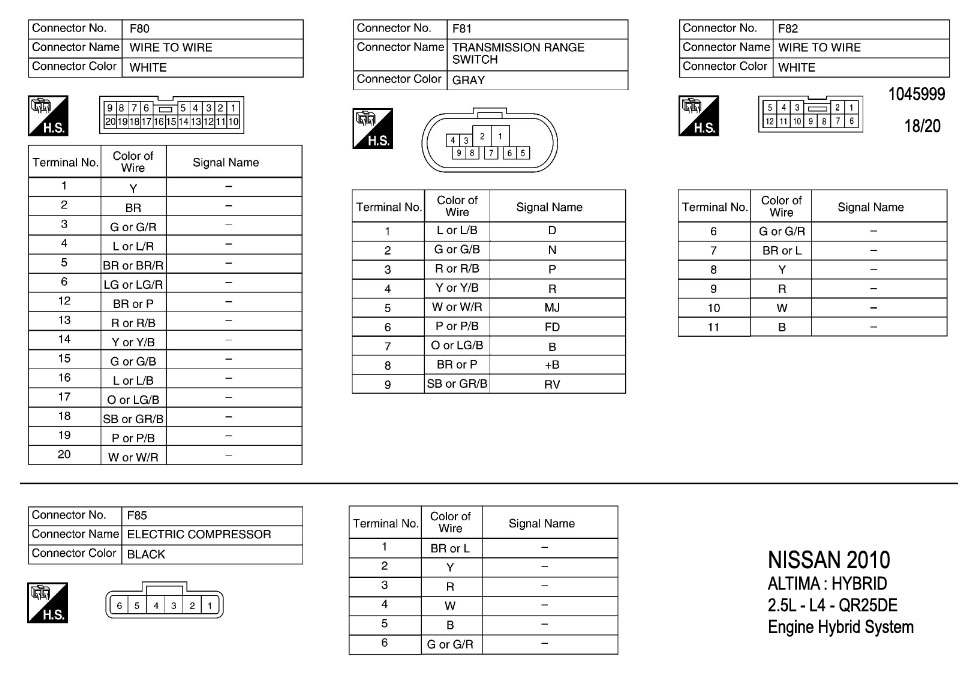

| 2.5L - 4 Cil. - QR25DE - 18/20 | DIAGRAMA SYSTEM CONNECTORS |

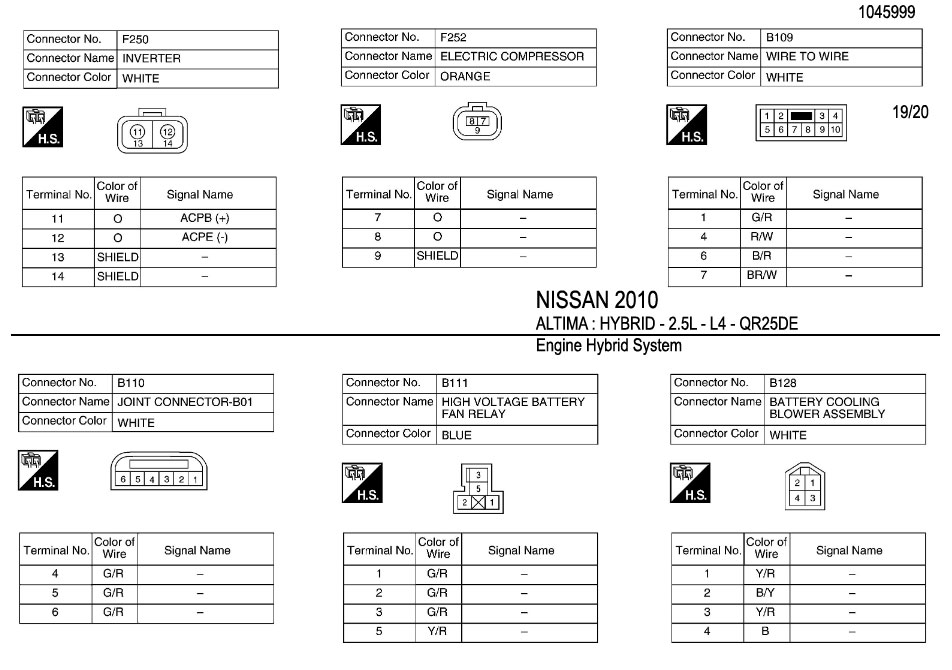

| 2.5L - 4 Cil. - QR25DE - 19/20 | DIAGRAMA SYSTEM CONNECTORS |

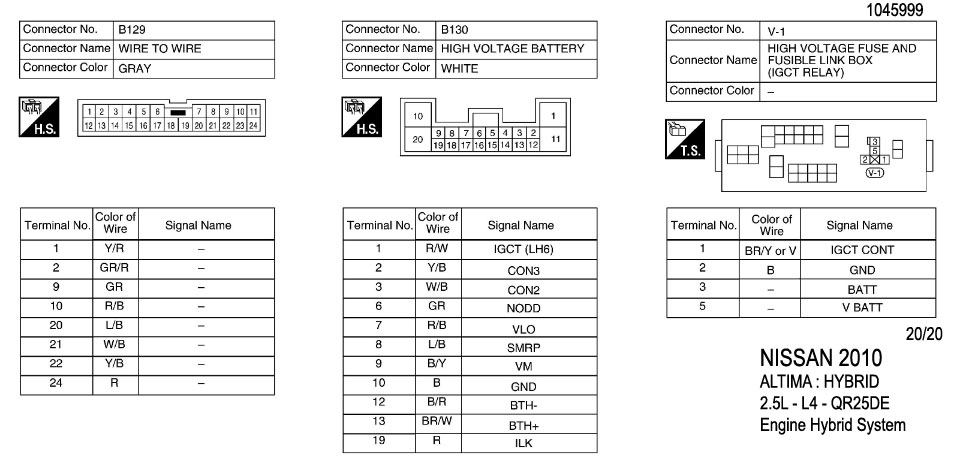

| 2.5L - 4 Cil. - QR25DE - 20/20 | DIAGRAMA SYSTEM CONNECTORS |
