| Diagrama - Arrancador / Bateria y conexiones . Vehiculos
DODGE 2015 En estos diagramas se describen los circuitos que conectan y activan el funcionamiento del Arrancador [Starter, motor de arranque] |
 |
| Los Diagramas, listados abajo, se refieren unicamente al Circuito electrico que involucra: Arrancador [starter] - DODGE 2015 - Arrancador = Starter, Motor de arranque - |
| DART: AERO | |

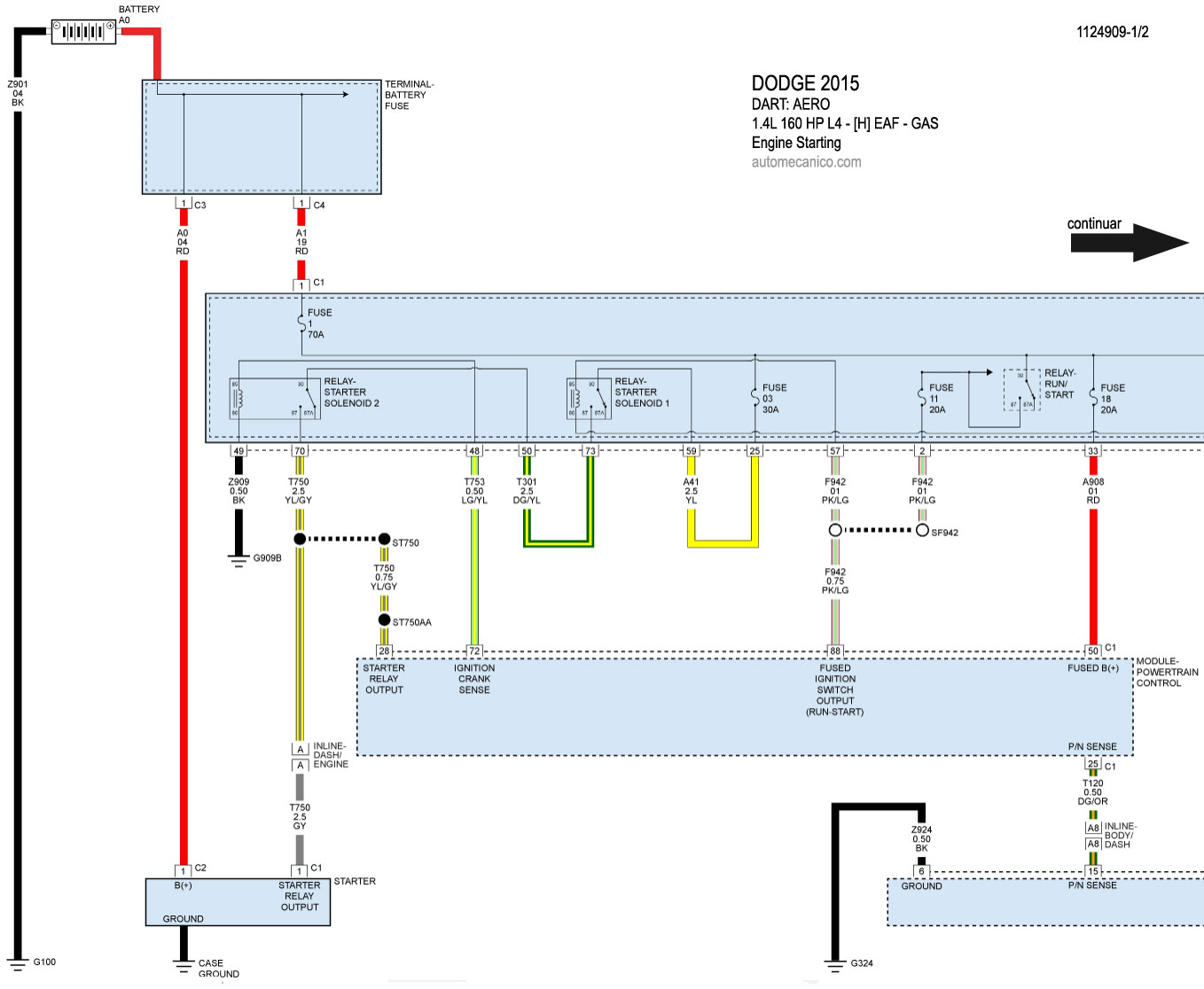

| 1.4L - 4 Cil. - 1/2 | Engine Starting |

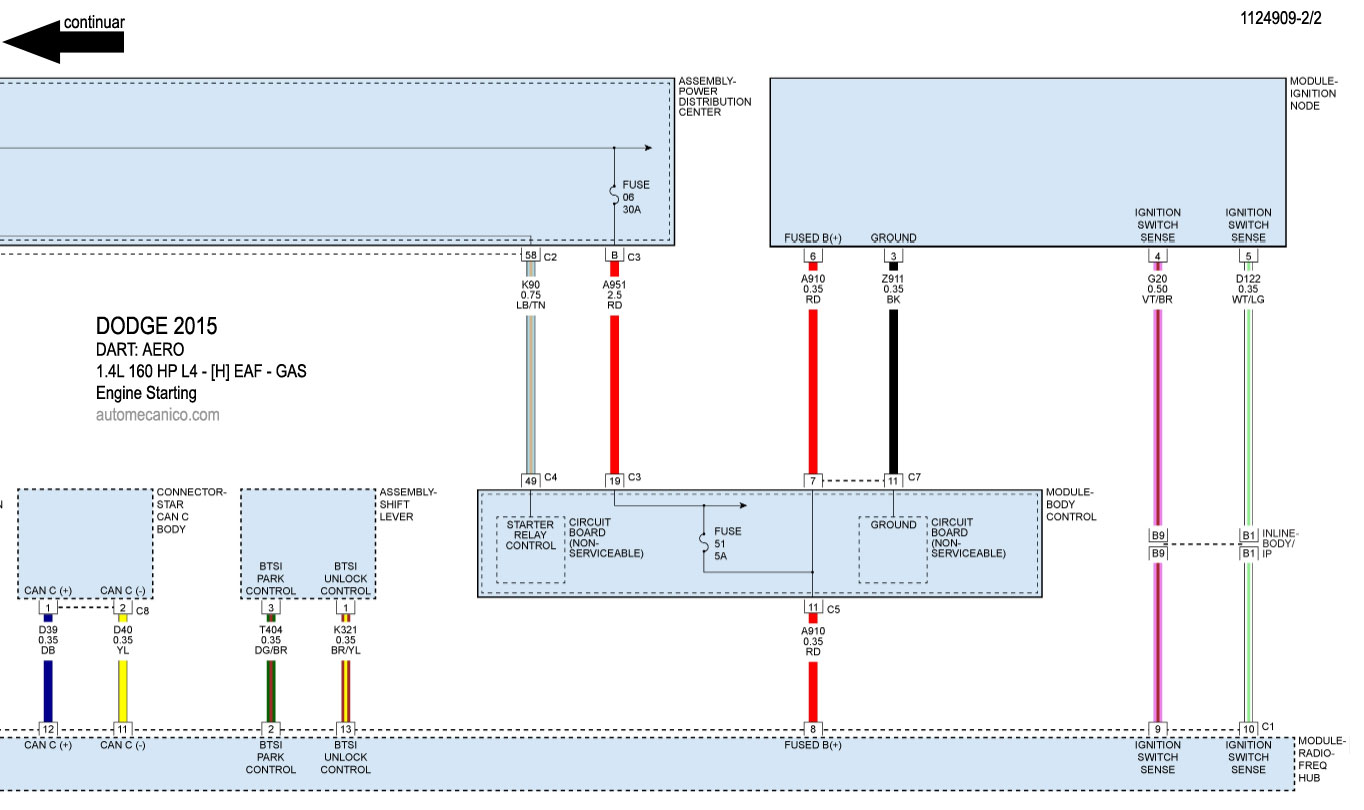

| 1.4L - 4 Cil. - 2/2 | Engine Starting |
| DART: GT | |

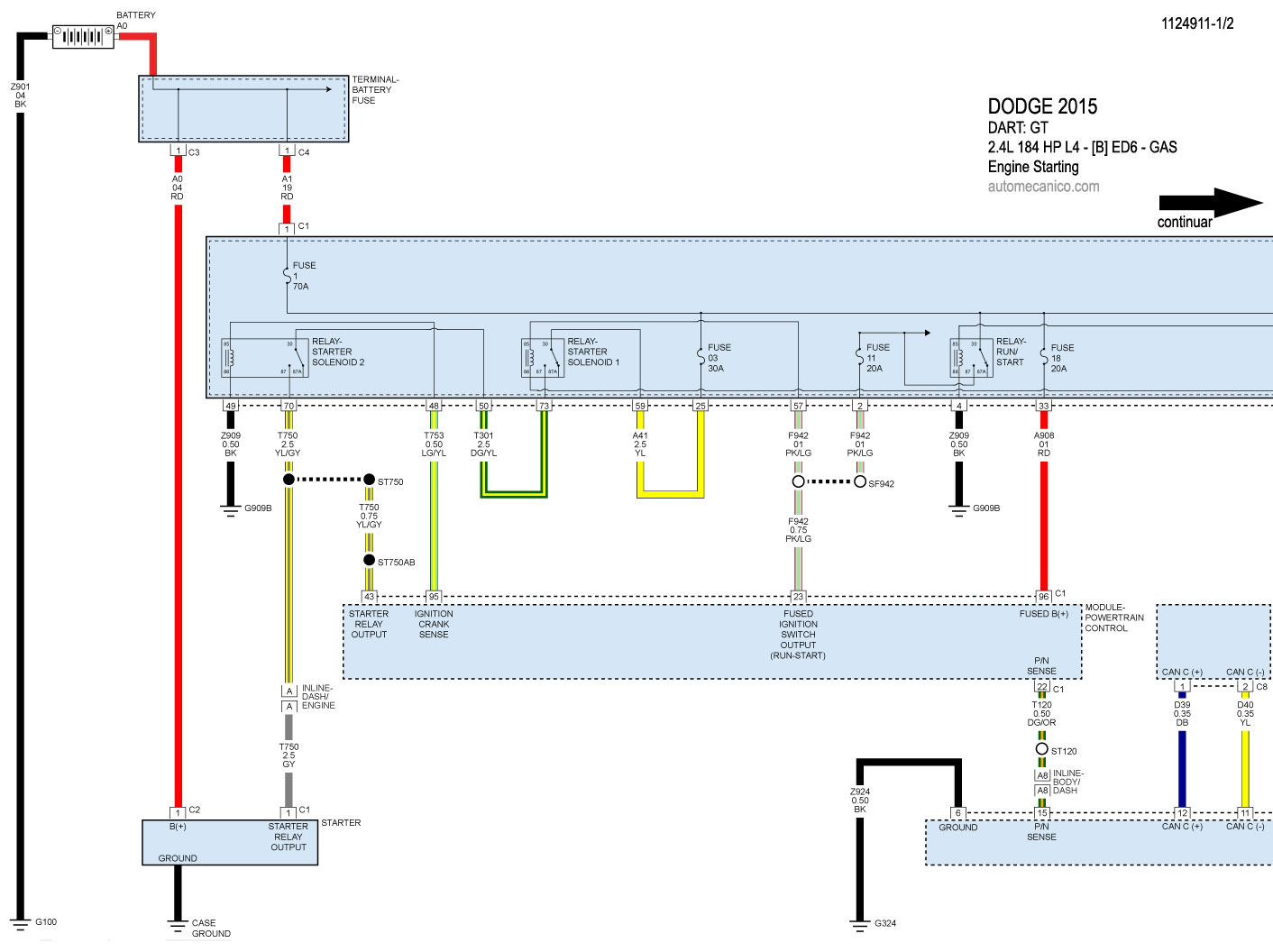

| 2.4L - 4 Cil. - 1/2 | Engine Starting |

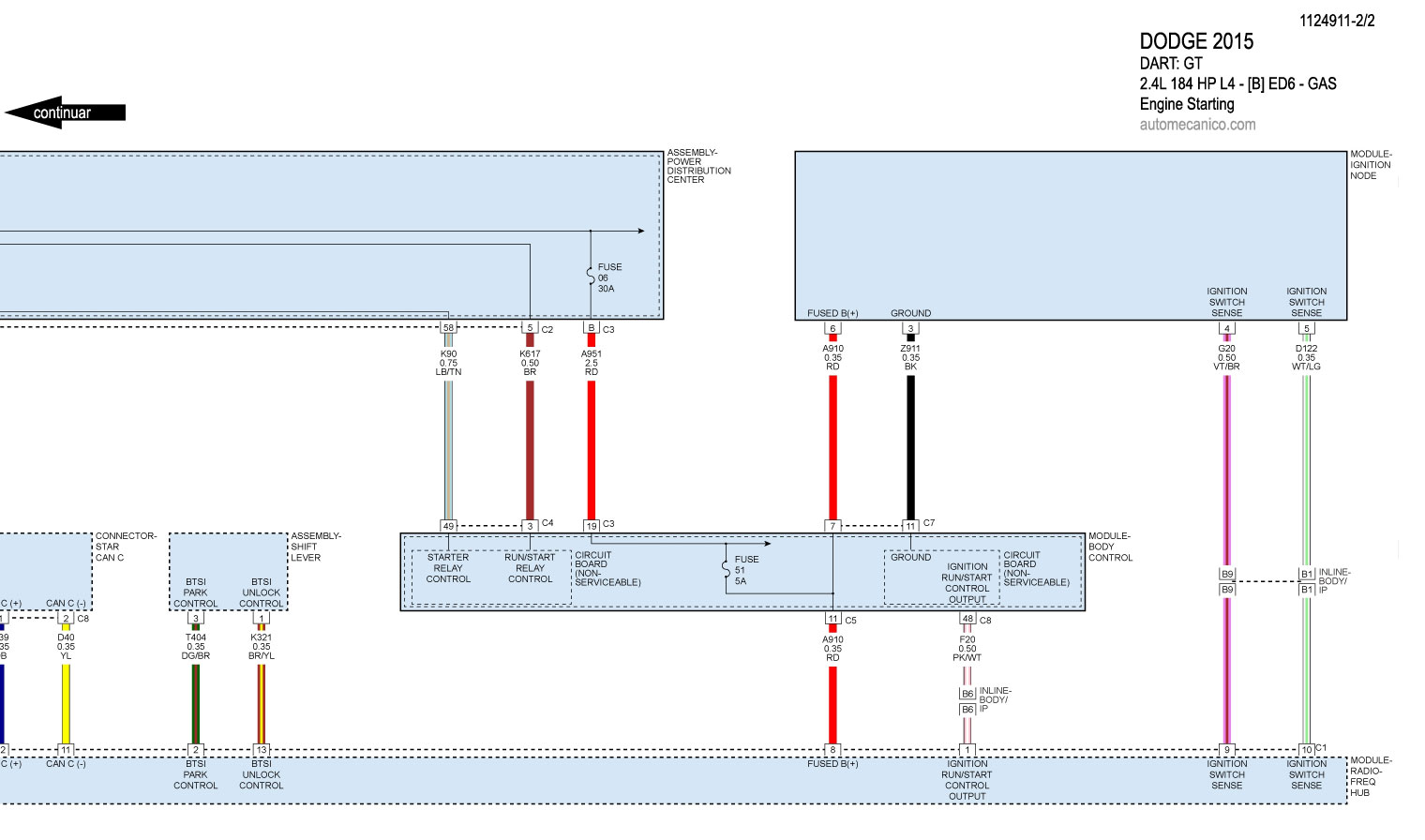

| 2.4L - 4 Cil. - 2/2 | Engine Starting |
| DURANGO: Citadel, | |

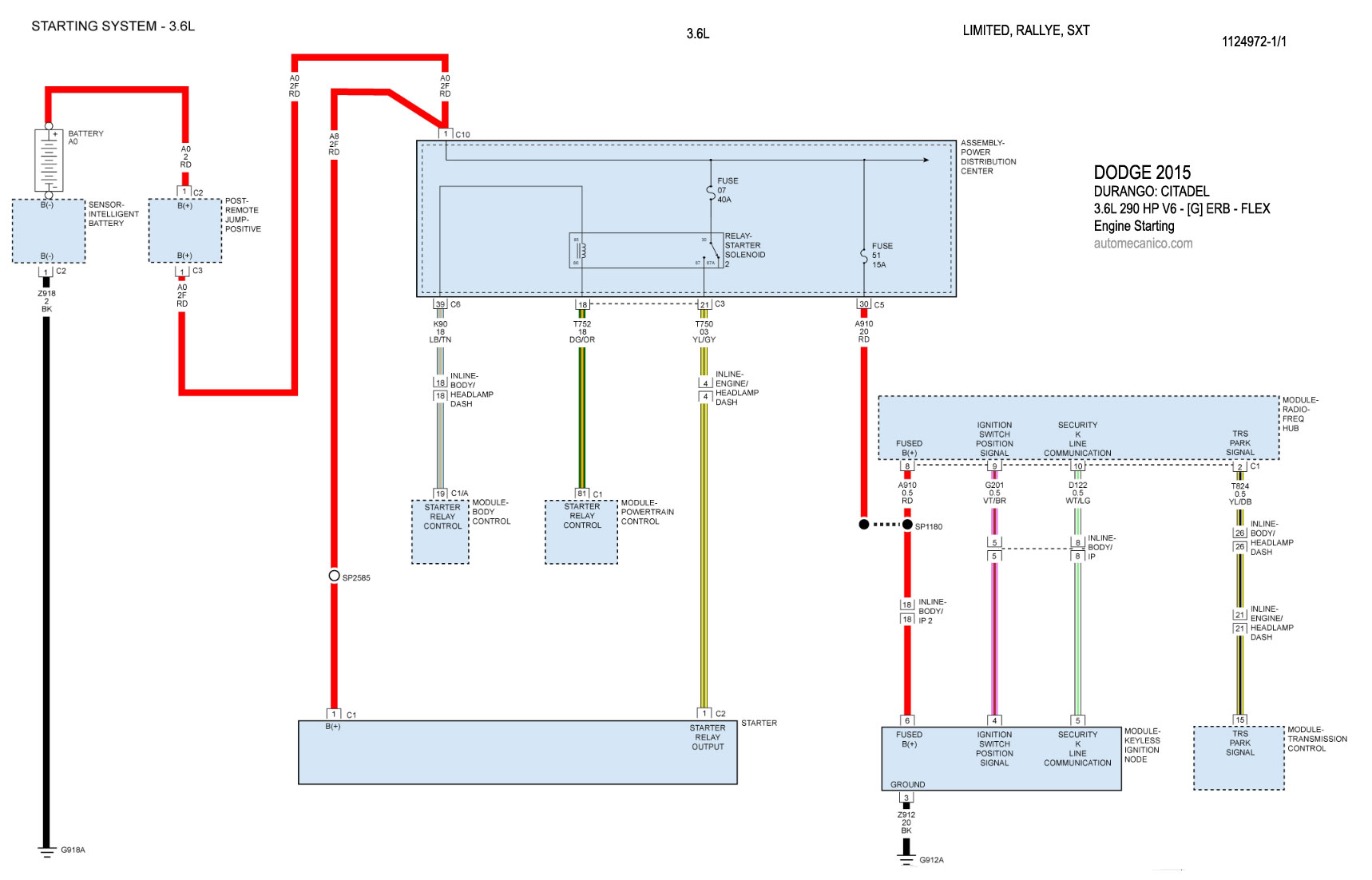

| 3.6L - V6 - 1/1 - Limited, Rallye , SXT | Engine Starting |
| 5.7L - V8 - 1/1 Limited, R/T | Engine Starting |
| GRAND CARAVAN: American Value Package | |

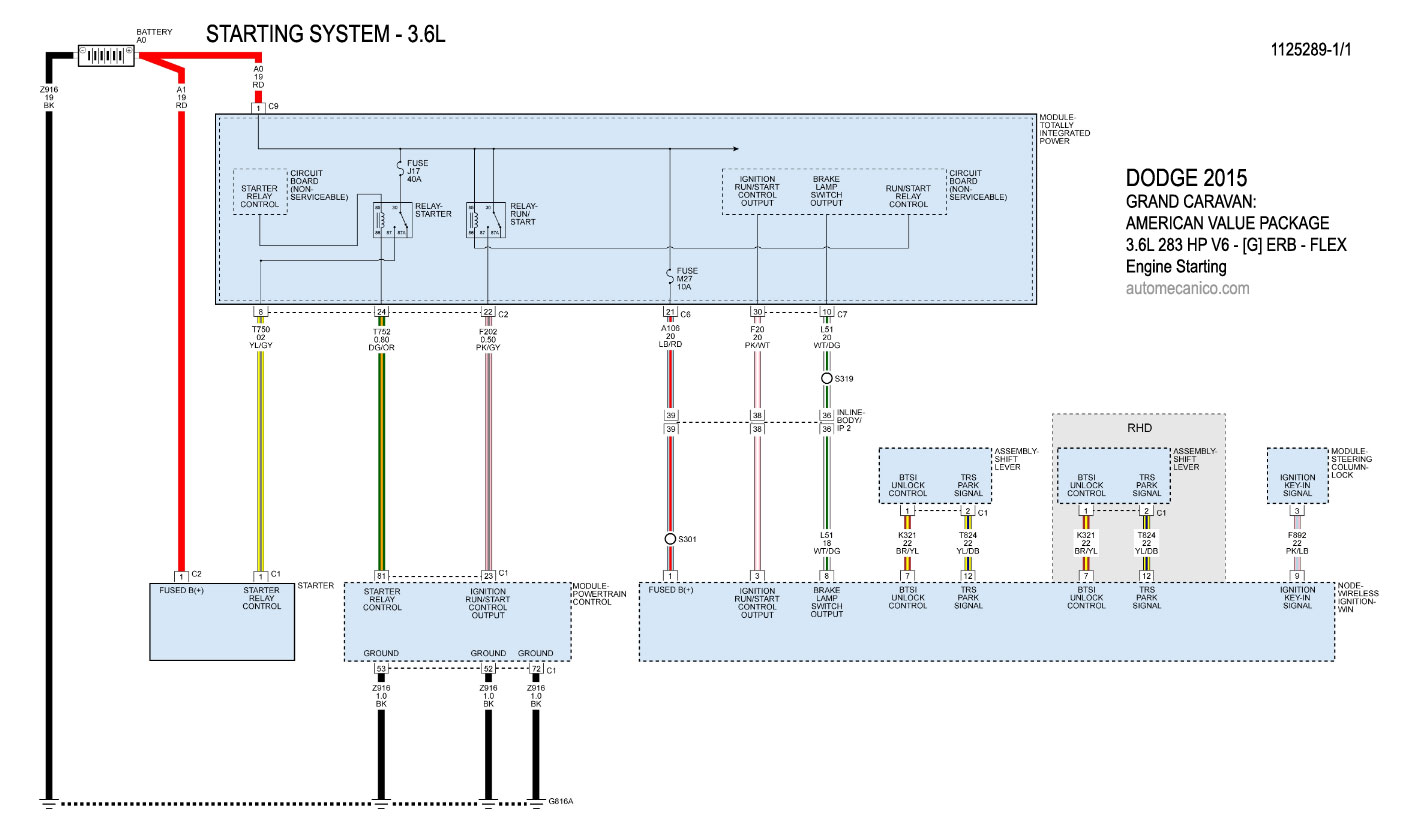

| 3.6L - V6 - 1/1 | Engine Starting |
| JOURNEY: AVP - Crossroad, Limited, R/T, SE, SXT | |
| 2.4L - 4 Cil. 1/1 | Engine Starting |
| 3.6L - V6 - 1/1 | Engine Starting |
| VIPER: GT, GTS | |

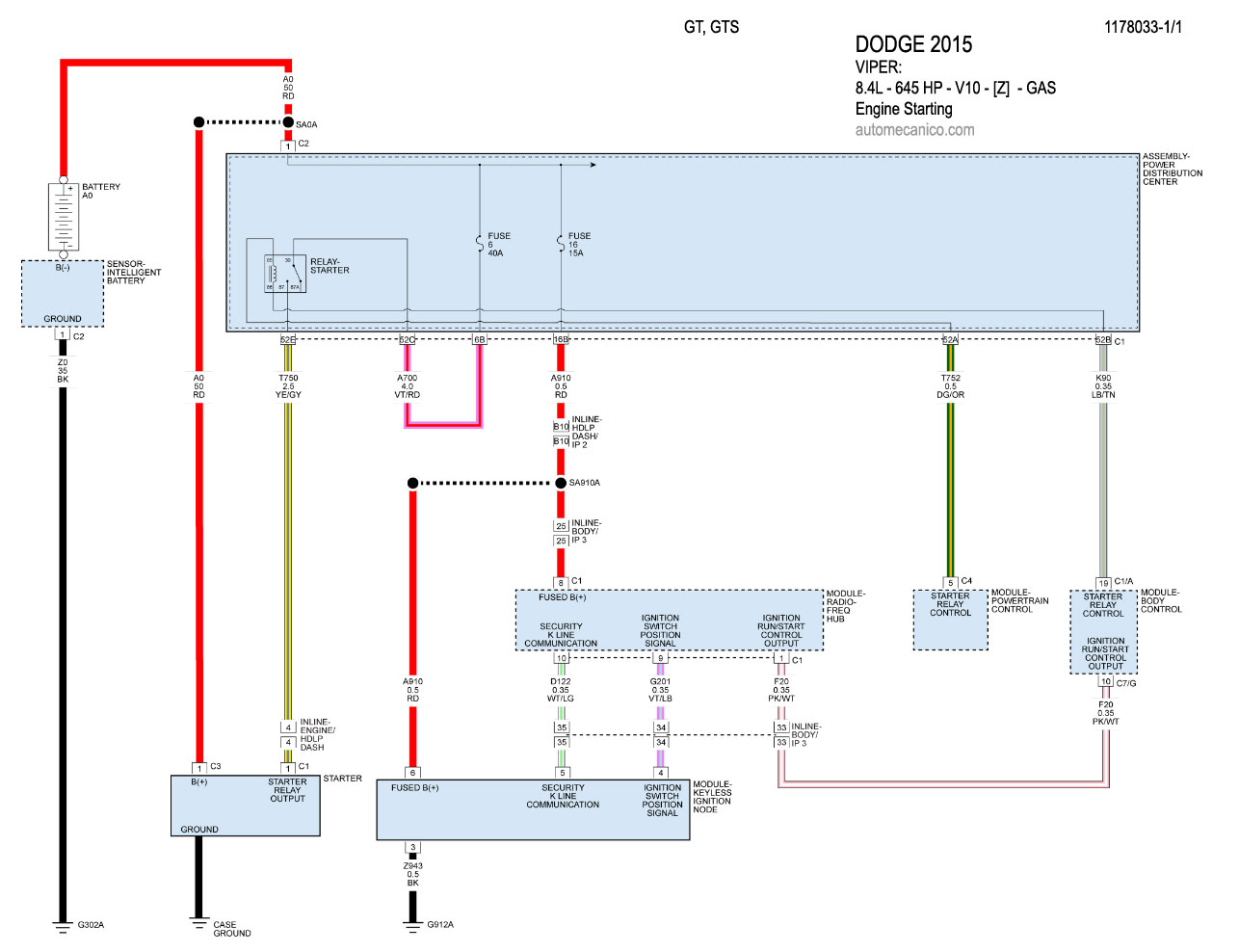

| 8.4L - V10 - 1/1 | Engine Starting |
