| DIAGRAMAS - CIRCUITO DE ARRANQUE DEL MOTOR - LINCOLN 2015 - Mecanica Automotriz - INDICE |
Diagramas LINCOLN : Engine Starting: - Esquemas - Graphics 2015 - |
| Diagrama - Arrancador / Bateria y conexiones . Vehiculos
LINCOLN 2015 En estos diagramas se describen los circuitos que conectan y activan el funcionamiento del Arrancador [Starter, motor de arranque] |
 |
| Los Diagramas, listados abajo, se refieren unicamente al Circuito electrico que involucra: Arrancador [starter] - LINCOLN 2015 - Arrancador = Starter, Motor de arranque - |
| MKC: | |

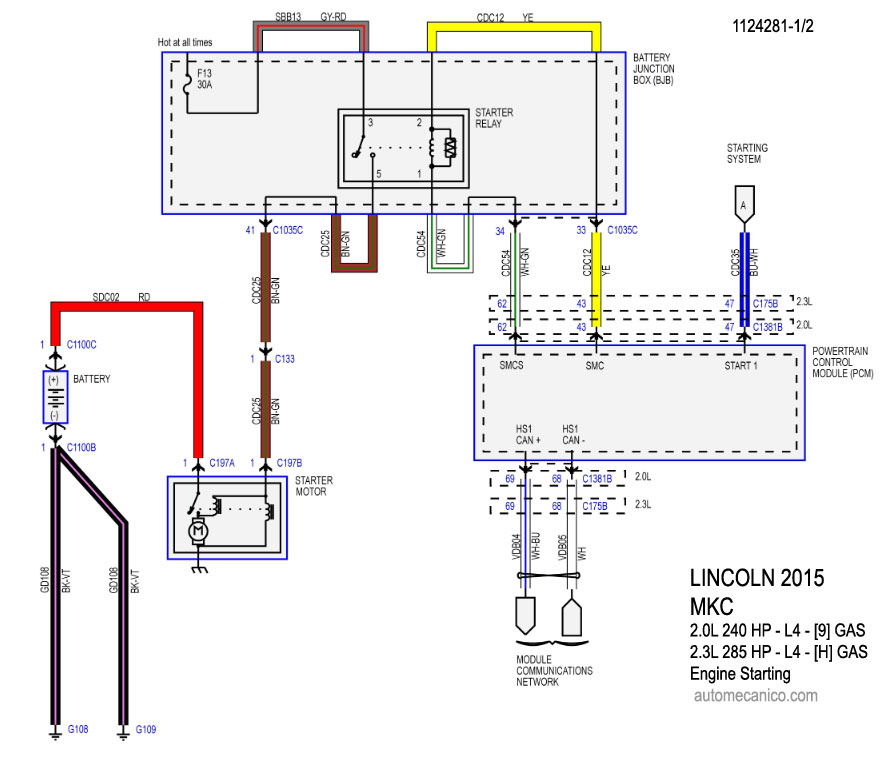

| 2.0L - L4 - 1/2 | Engine Starting |

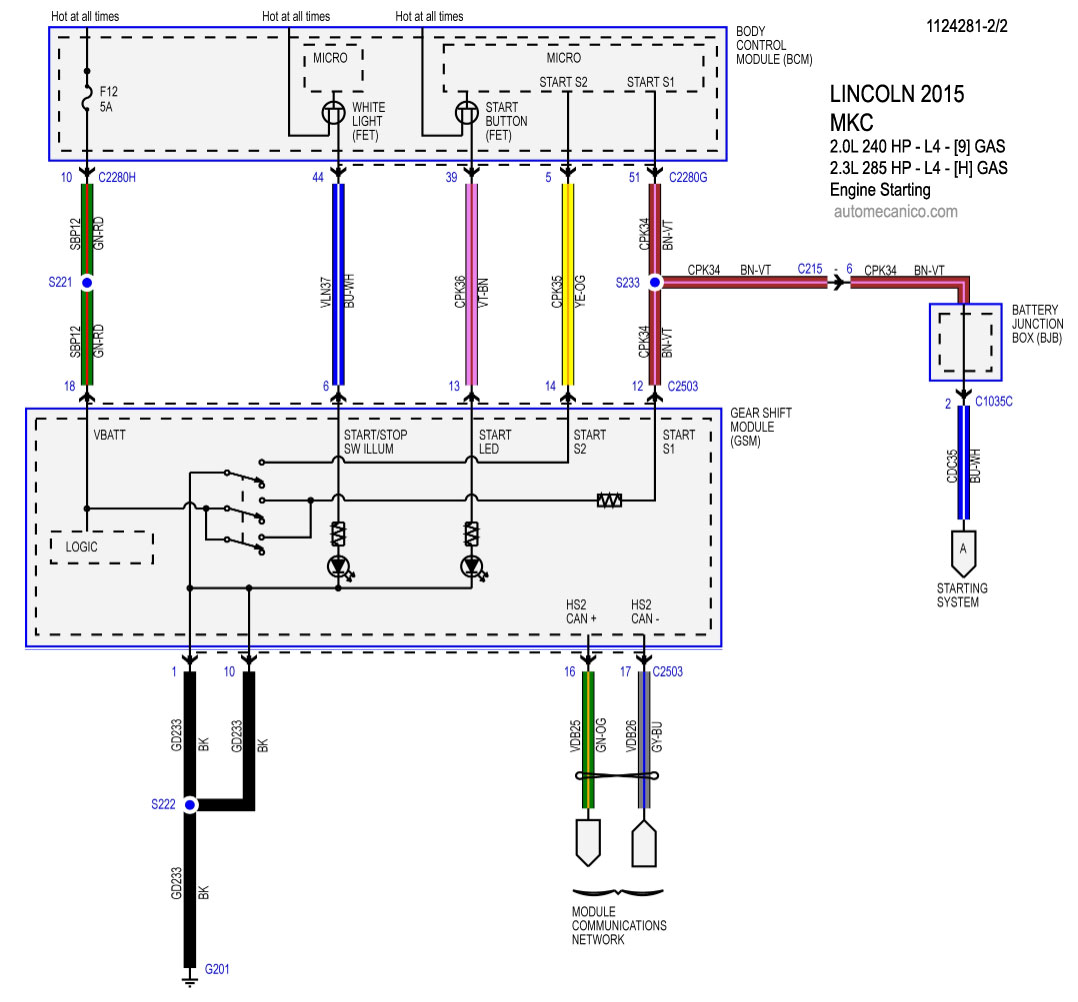

| 2.0L - L4 - 2/2 | Engine Starting |
| 2.3L - L4 - 1/2 | Engine Starting |
| 2.3L - L4 - 2/2 | Engine Starting |

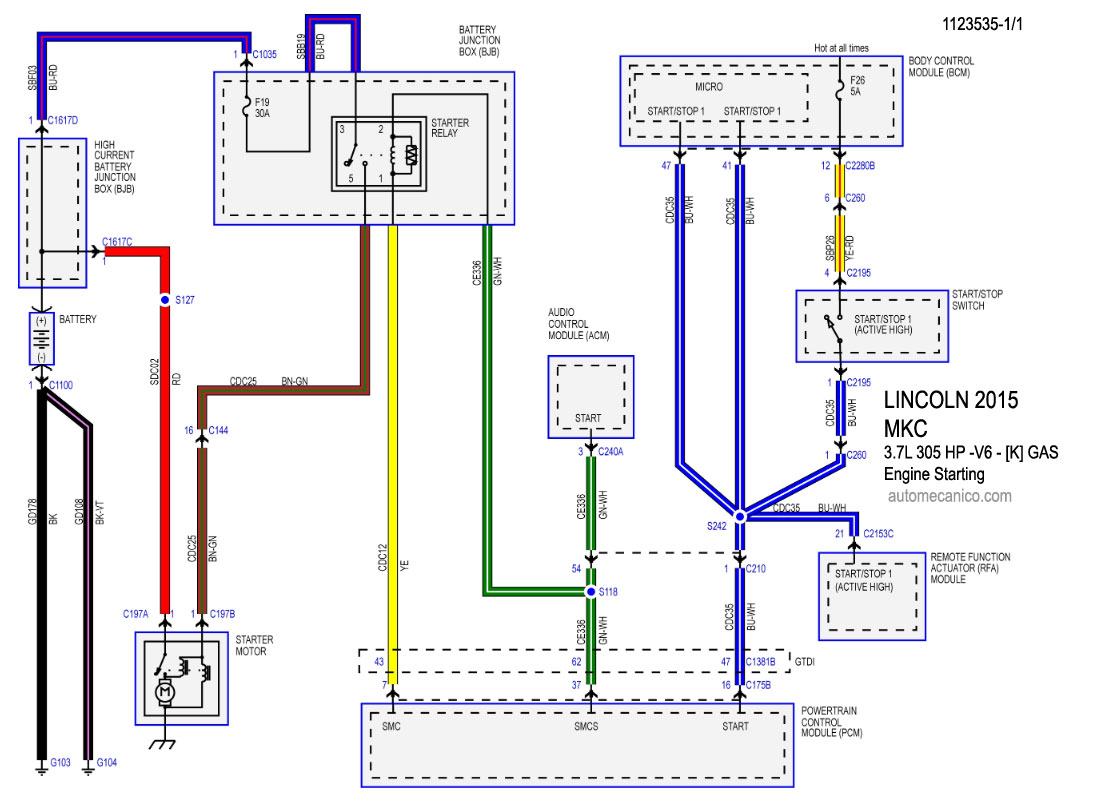

| 3.7L - V6 - 1/1 | Engine Starting |
| MKS: Ecoboost | |

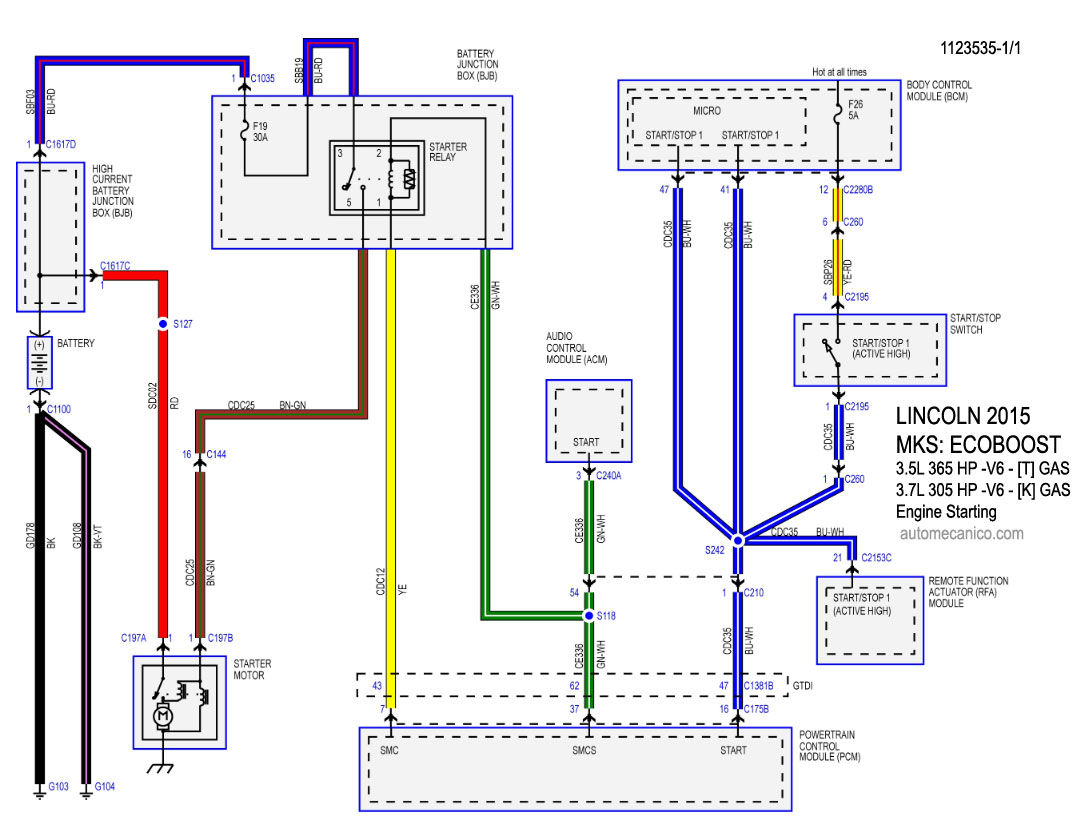

| 3.5L - V6 - 1/1 | Engine Starting |
| 3.7L - V6 - 1/1 | Engine Starting |
| MKT: Ecoboost | |

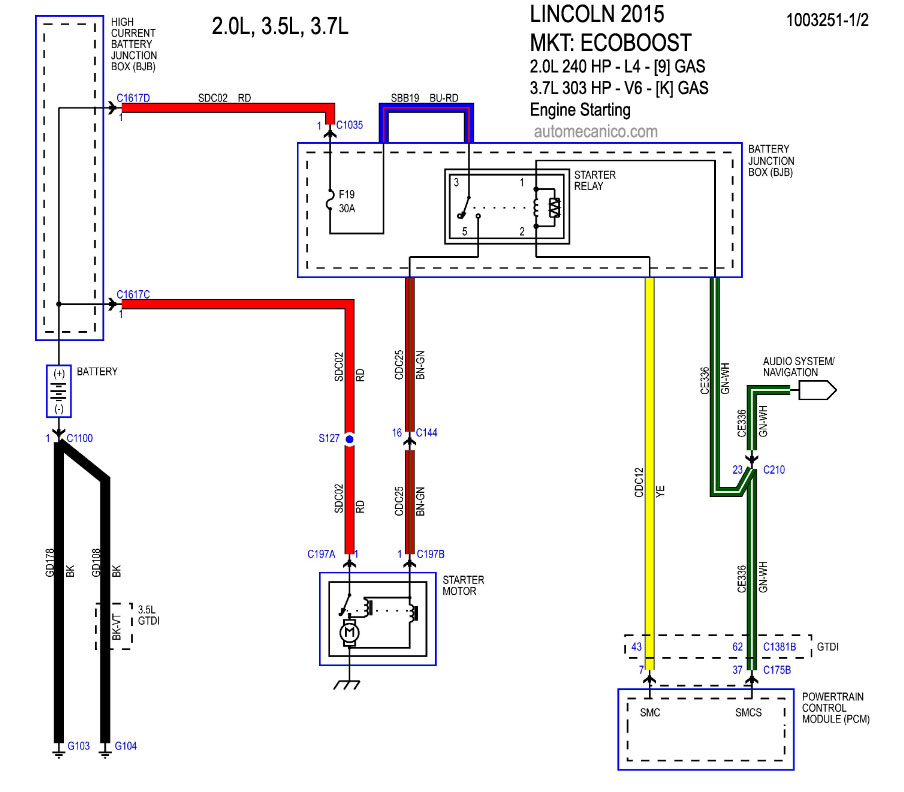

| 2.0L - L4 - 1/2 | Engine Starting |

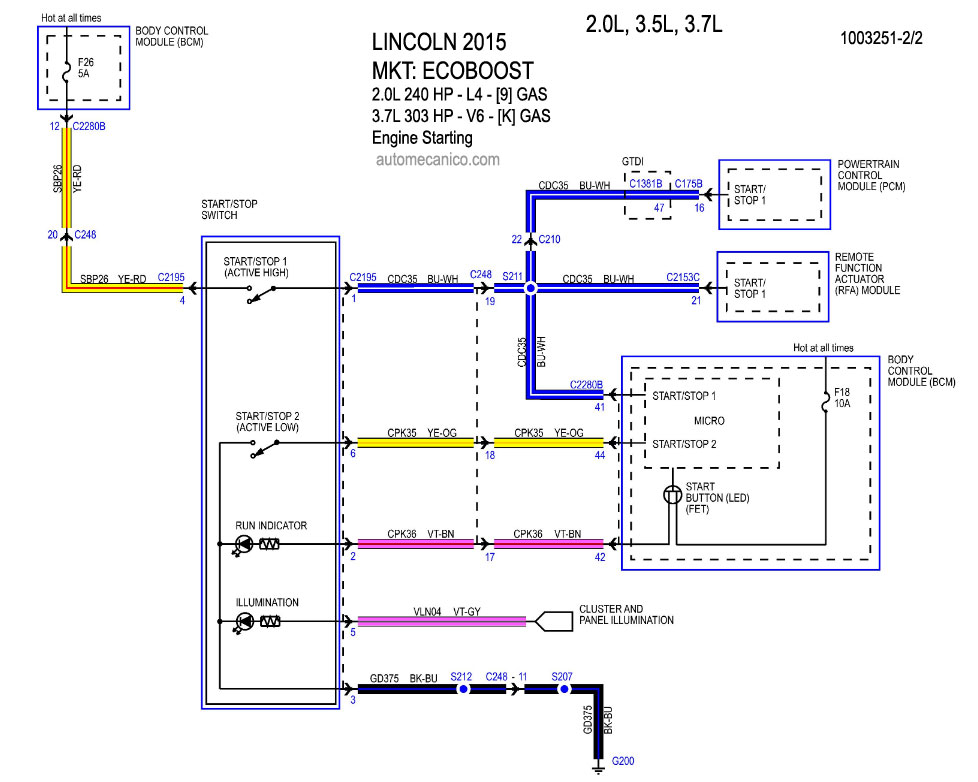

| 2.0L - L4 - 2/2 | Engine Starting |
| 3.7L - V6 - 1/2 | Engine Starting |
| 3.7L - V6 - 2/2 | Engine Starting |
| MKX | |

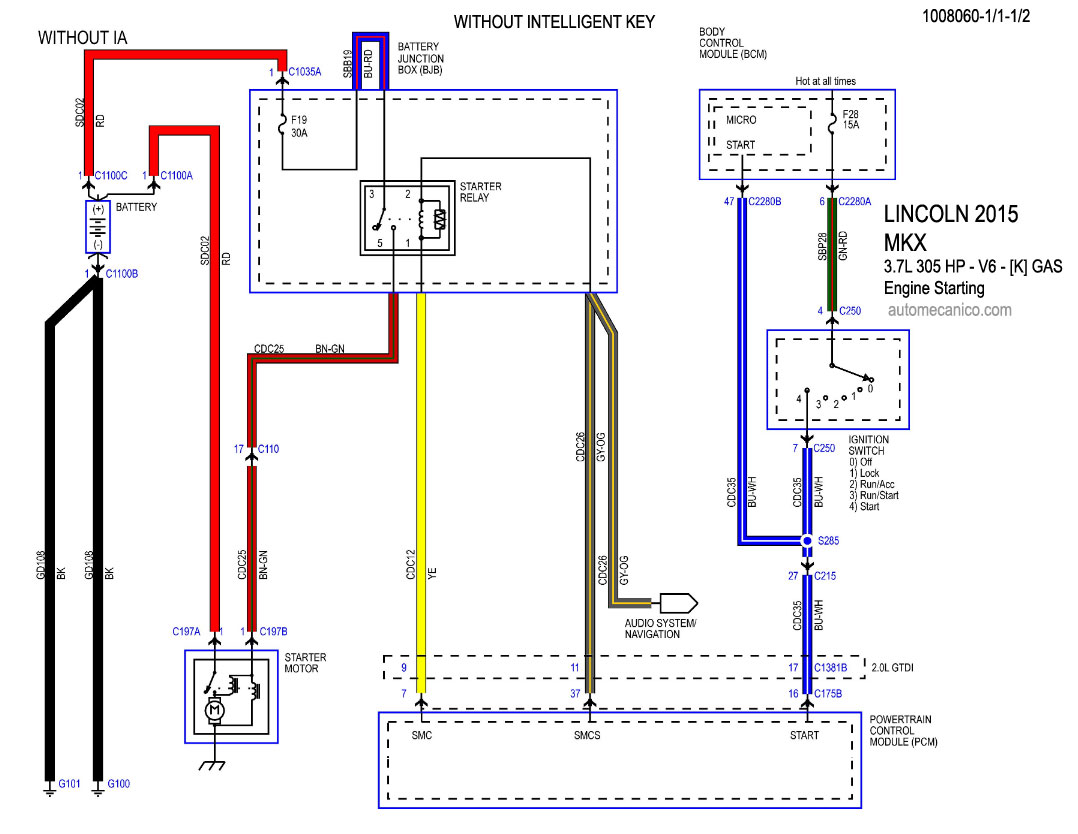

| 3.7L - V6 -With/out Intelligent Key - 1/1 | Engine Starting |

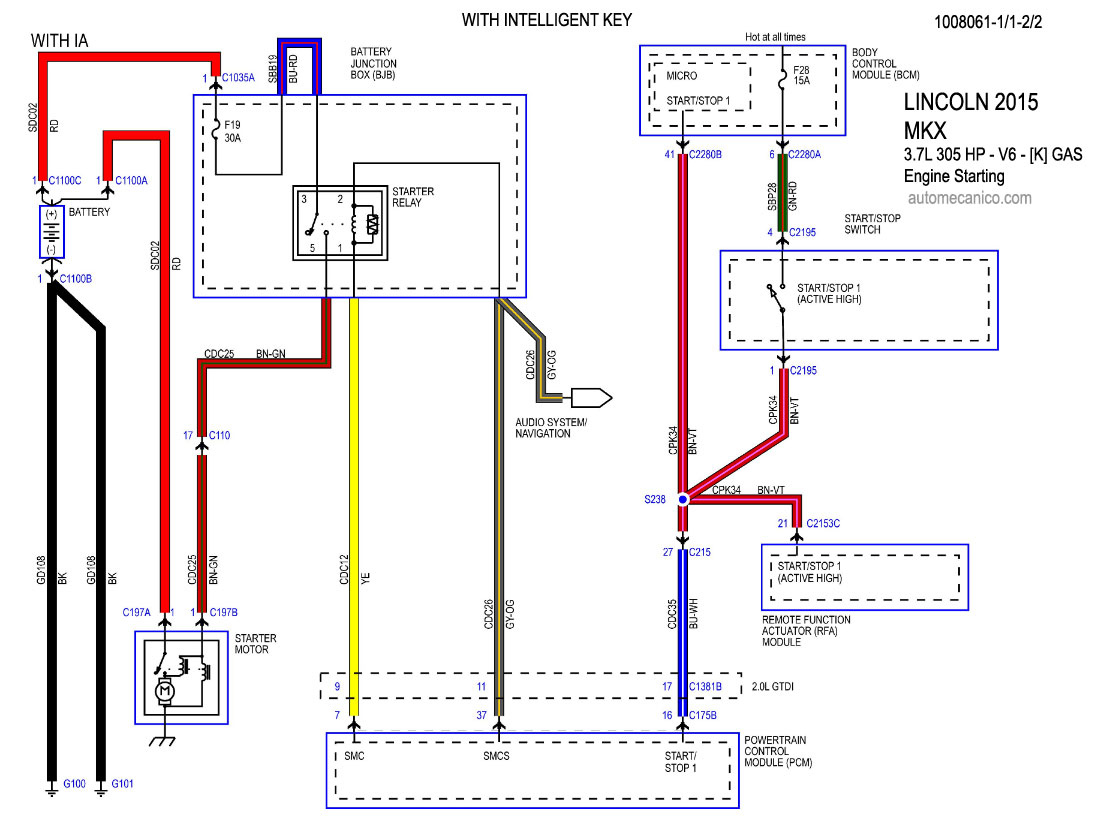

| 3.7L - V6 -With Intelligent Key - 1/1 | Engine Starting |
