| DIAGRAMAS - CIRCUITO DE ARRANQUE DEL MOTOR - LINCOLN 2015 - Mecanica Automotriz - INDICE |
Diagramas LINCOLN : Engine Starting: - Esquemas - Graphics 2015 - |
| Diagrama - Arrancador / Bateria y conexiones . Vehiculos
LINCOLN 2015 En estos diagramas se describen los circuitos que conectan y activan el funcionamiento del Arrancador [Starter, motor de arranque] |
 |
| Los Diagramas, listados abajo, se refieren unicamente al Circuito electrico que involucra: Arrancador [starter] - LINCOLN 2015 - Arrancador = Starter, Motor de arranque - |
| MKZ | |

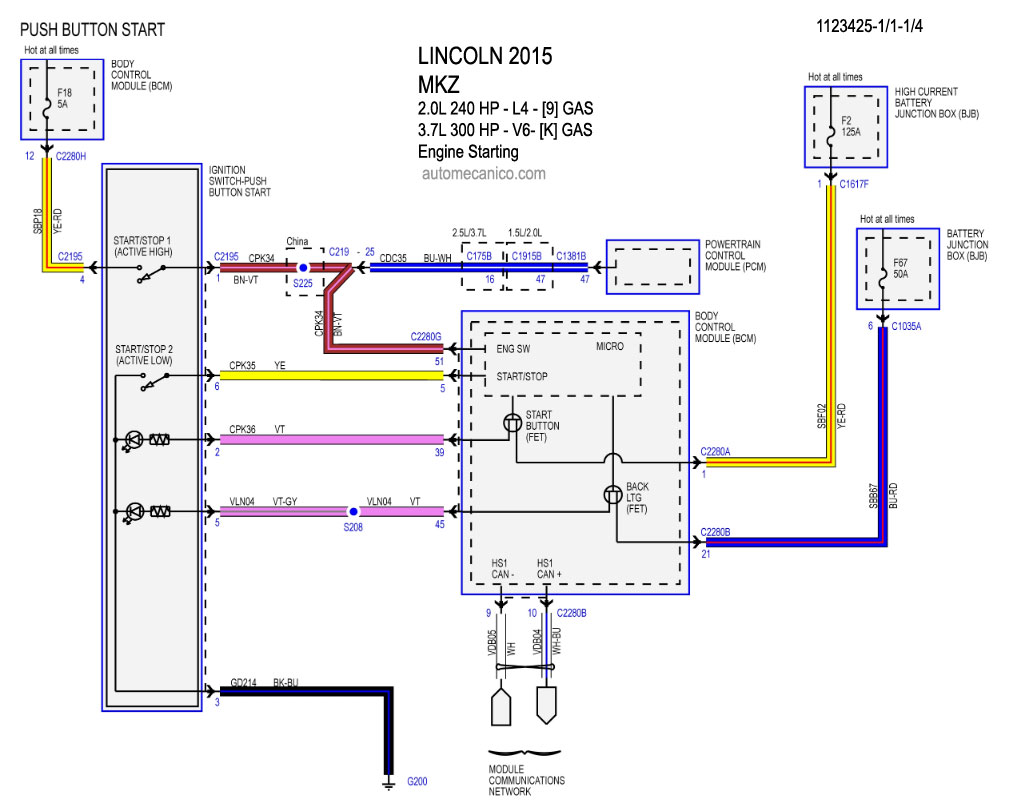

| 2.0L - 4 Cil. With Push Button Start - 1/4 | Engine Starting |

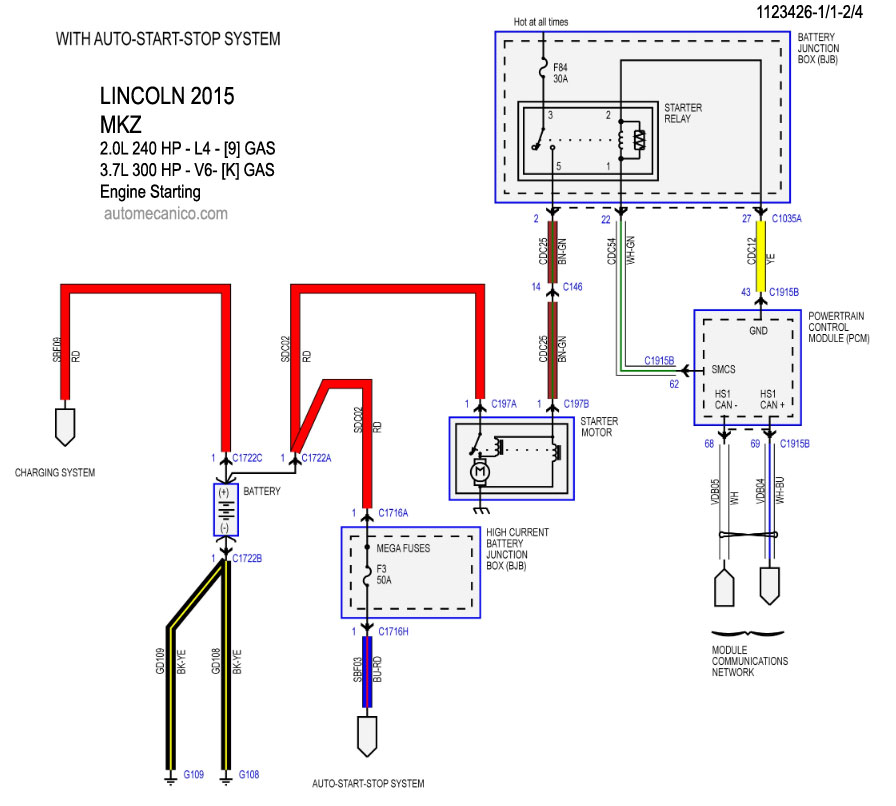

| 2.0L - 4 Cil. With Auto Start - Stop System - 2/4 | Engine Starting |

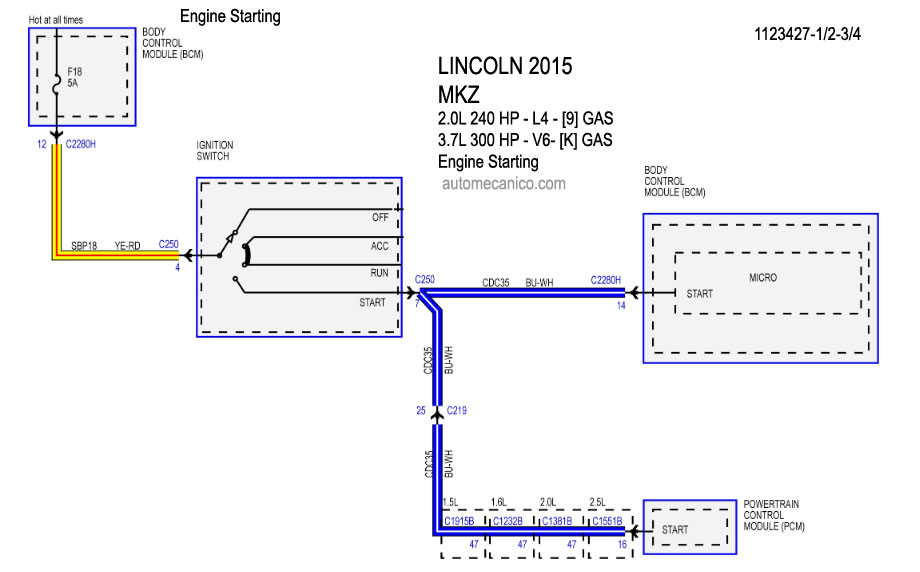

| 2.0L - 4 Cil. With Auto Start - Stop System 3/4 | Engine Starting |

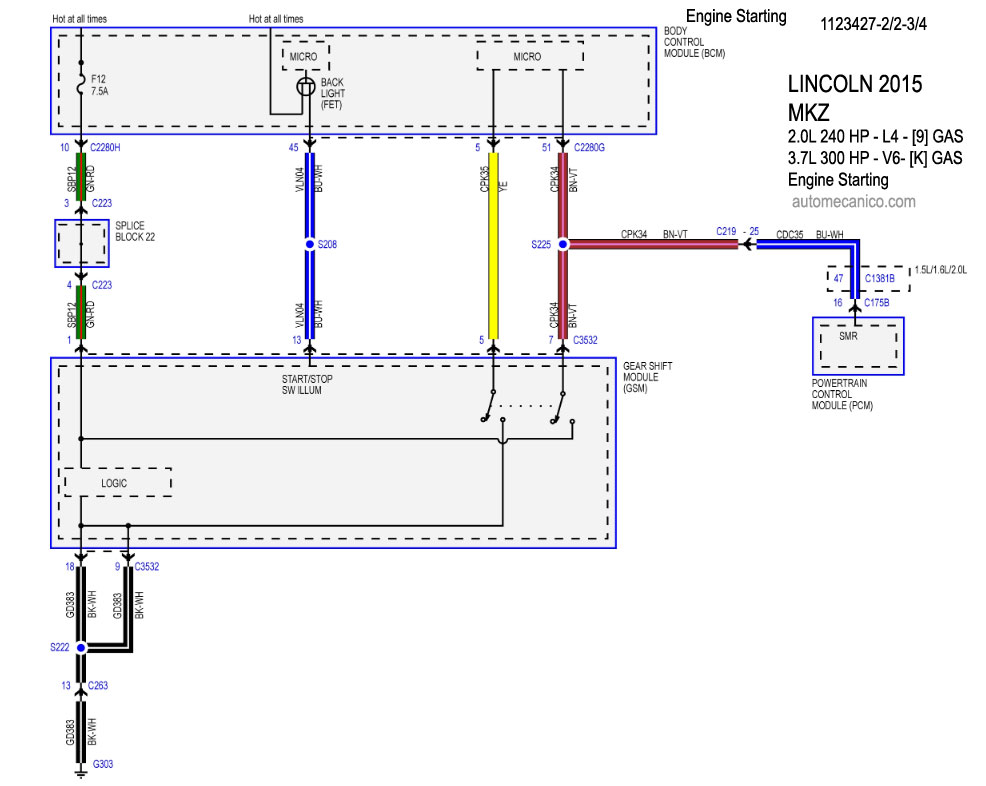

| 2.0L - 4 Cil. With Auto Start - Stop System 3/4 | Engine Starting |

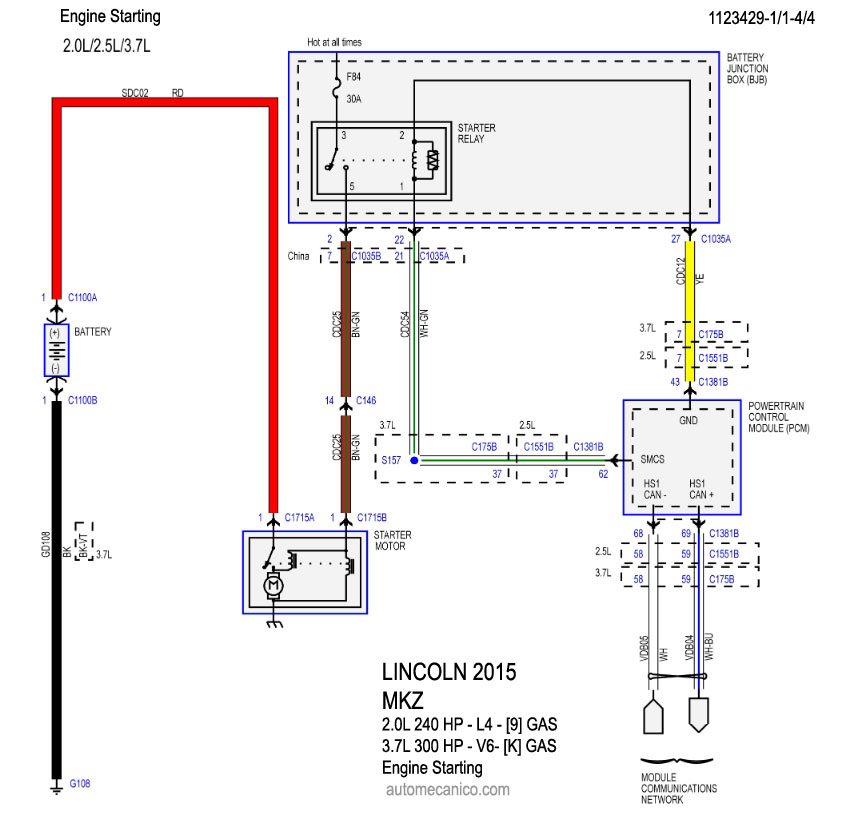

| 2.0L - 4 Cil.With Auto Start - Stop System 4/4 | Engine Starting |
| 3.7L - V6 -With Push Button Start - 1/4 | Engine Starting |
| 3.7L - V6 -With Auto Start - Stop System 2/4 | Engine Starting |
| 3.7L - V6 - With Auto Start - Stop System 3/4 | Engine Starting |
| 3.7L - V6 - With Auto Start - Stop System 3/4 | Engine Starting |
| 3.7L - V6 -With Auto Start - Stop System 4/4 | Engine Starting |
| MKZ: black Label Hybrid | |

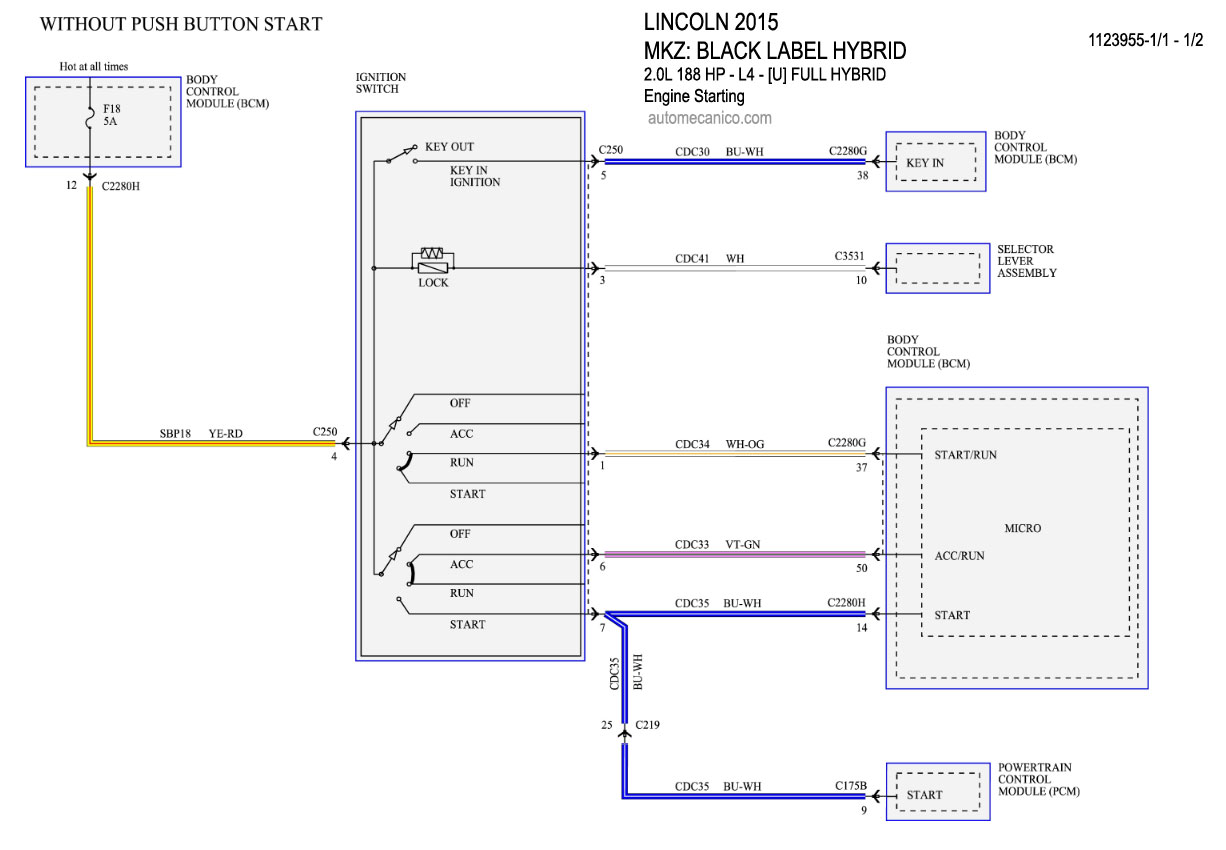

| 2.0L - 4 Cil. With/out Push Button Start - 1/2 | Engine Starting |

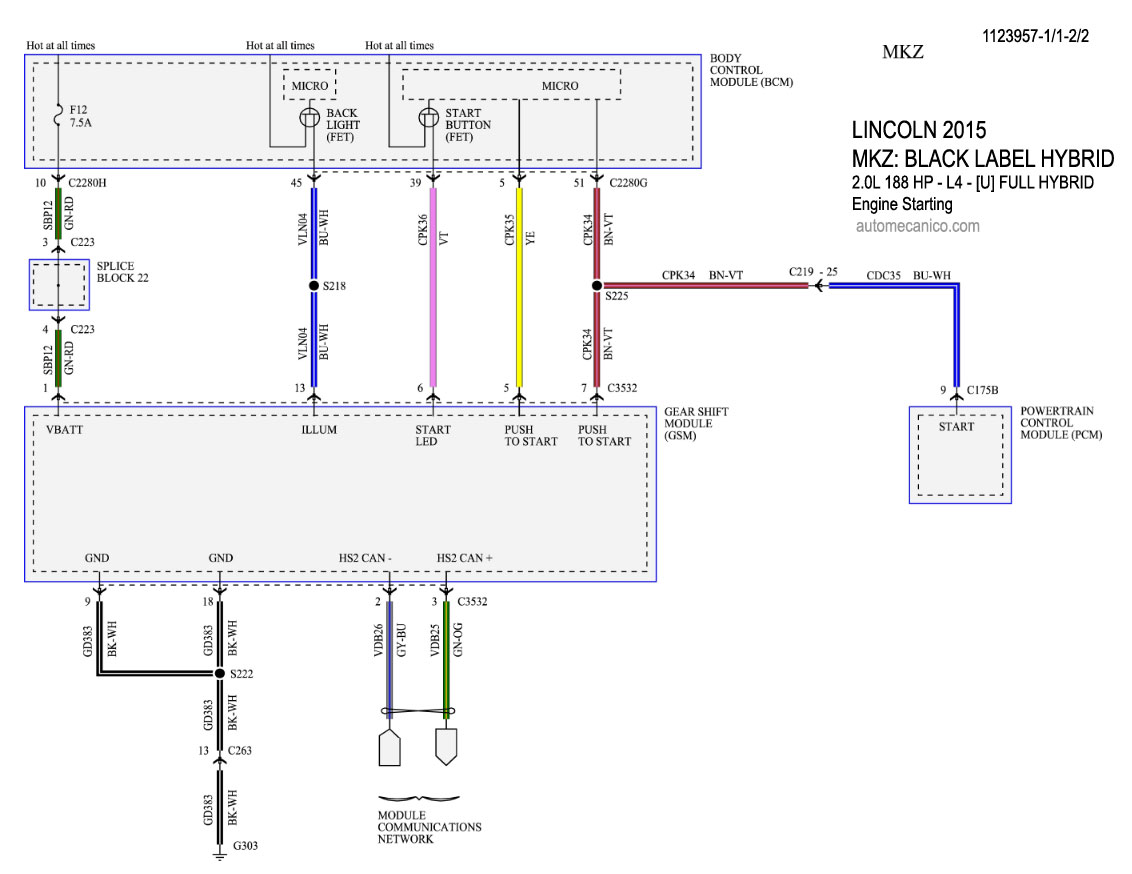

| 2.0L - 4 Cil. - With Push Button Start - 2/2 | Engine Starting |
| NAVIGATOR | |

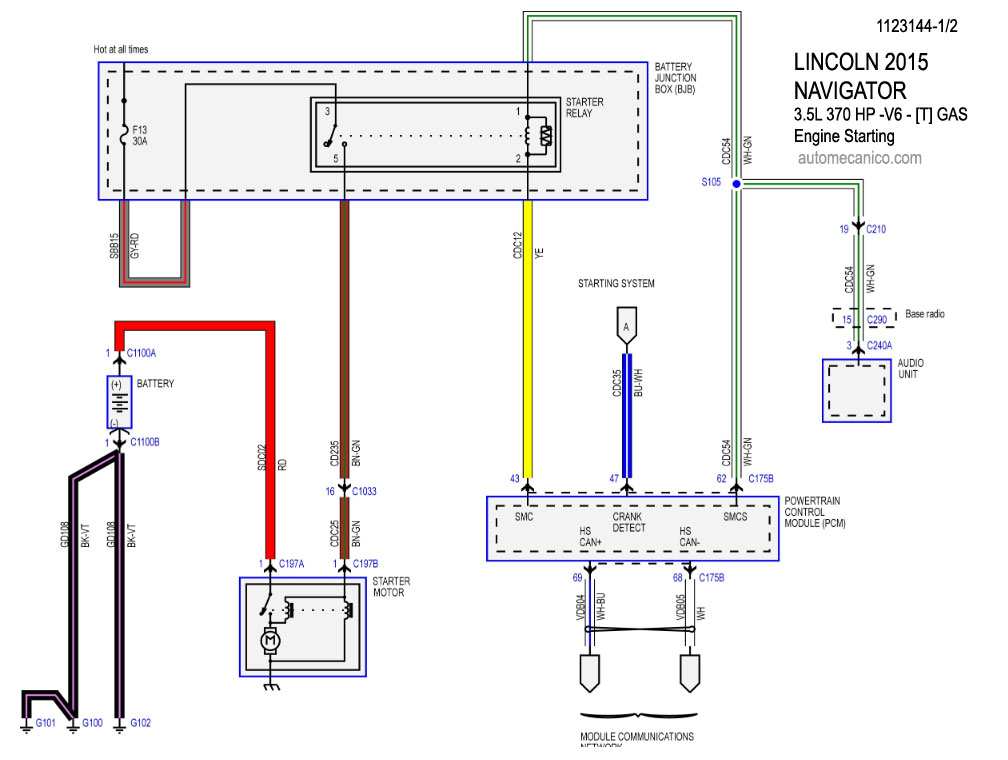

| 3.5L - V6 - 1/2 | Engine Starting |

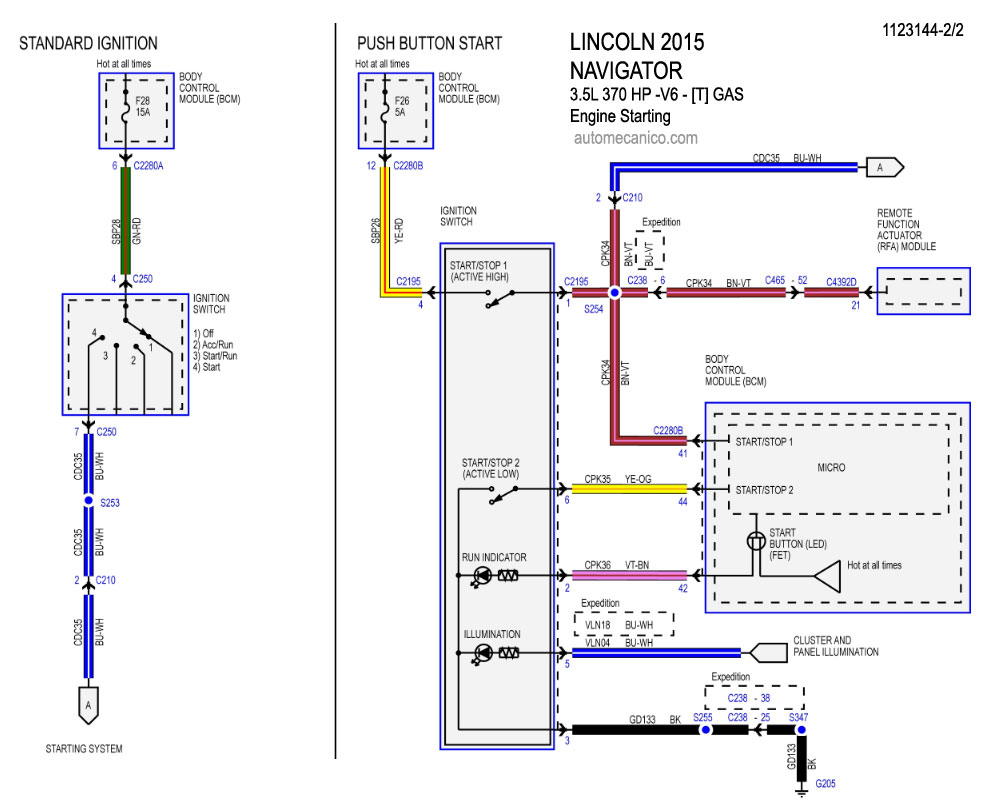

| 3.5L - Push Button Start, Standat Ignition - V6 - 2/2 | Engine Starting |
