| CONTROL DEL MOTOR - ENGINE CONTROL - DIAGRAMAS - ESQUEMAS - CHEVROLET 2005 |
DIAGRAMAS - CHEVROLET: Corvette - 2005 - |
| Diagramas especificos que representan el circuito que controla el
funcionamiento del motor. Que es un Diagrama?, para que sirve un Diagrama electrico automotriz?. En Mecanica: Podemos describir un Diagrama, como: Grafica que representa la relacion entre los diferentes componentes de un conjunto, o sistema electrico, permitiendonos ubicar estos componentes dentro de un circuito. De esta manera se facilita el estudio, y el analisis de un problema; y su posible solucion |
| DIAGRAMAS Control del motor / CHEVROLET: Corvette - 2005 - |
| Año | CHEVROLET | CORVETTE 6.0L V8 T. Autom. |

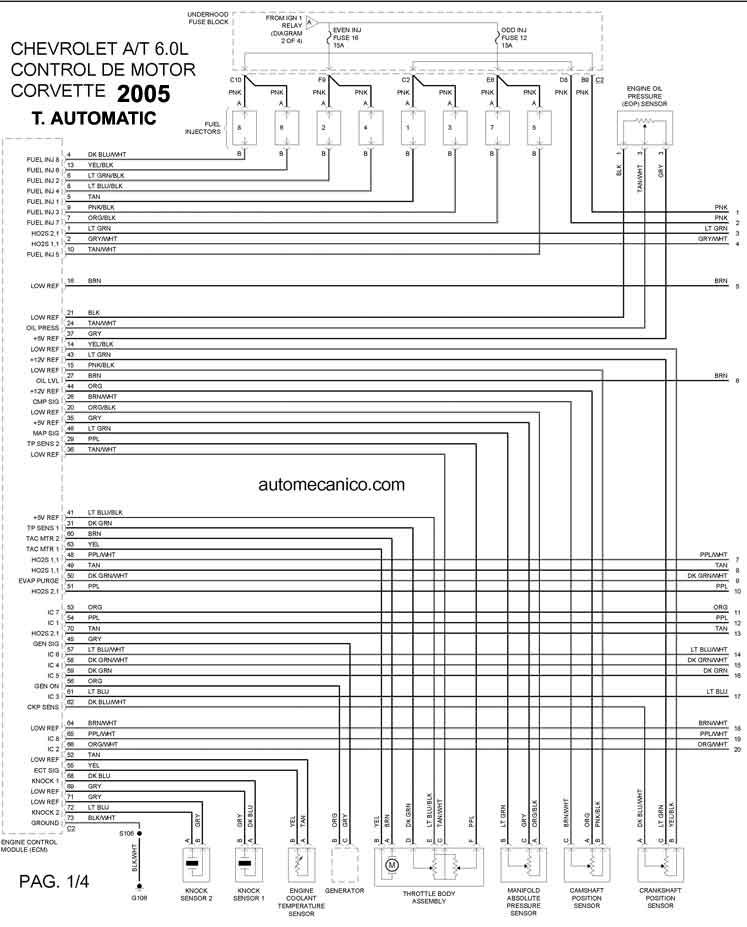

| 2005 | CORVETTE 6.0L V8 | CONTROL DEL MOTOR 1/4 |

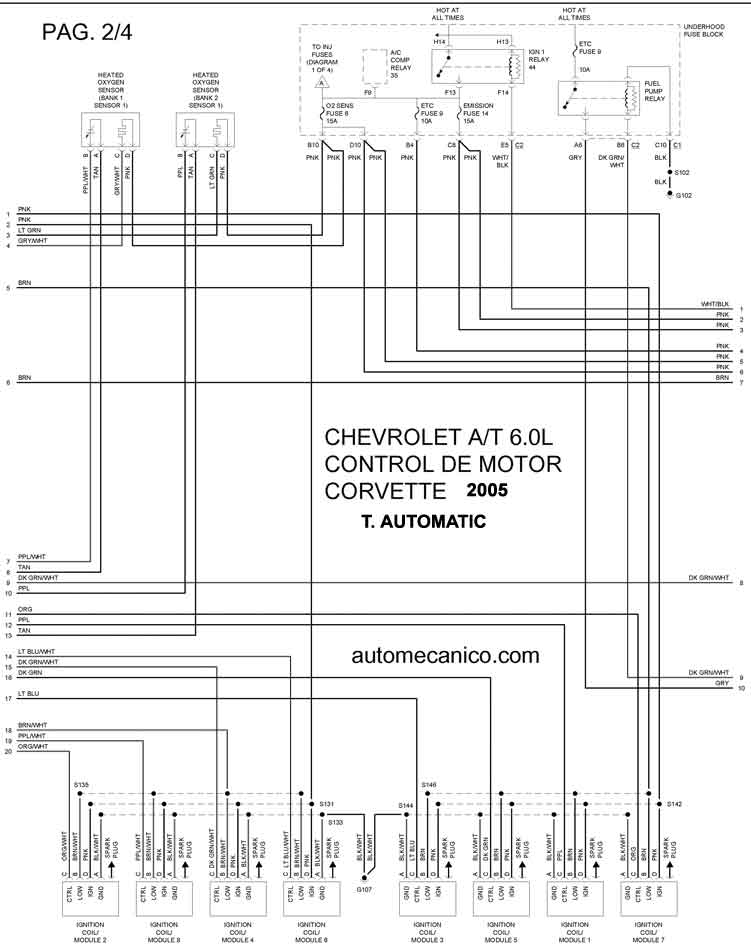

| 2005 | CORVETTE 6.0L V8 | CONTROL DEL MOTOR 2/4 |

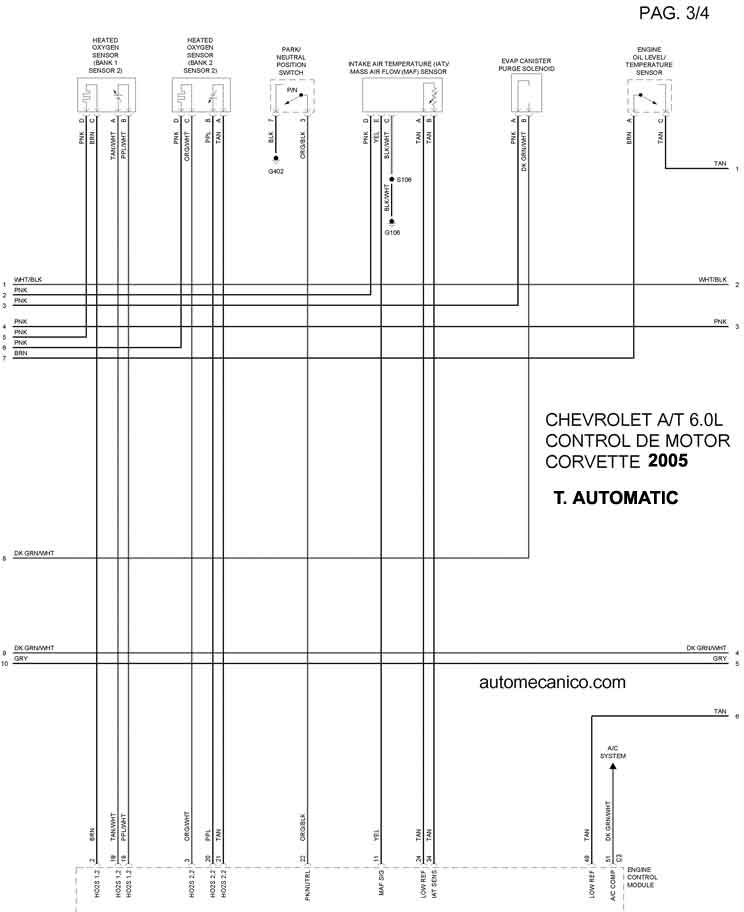

| 2005 | CORVETTE 6.0L V8 | CONTROL DEL MOTOR 3/4 |

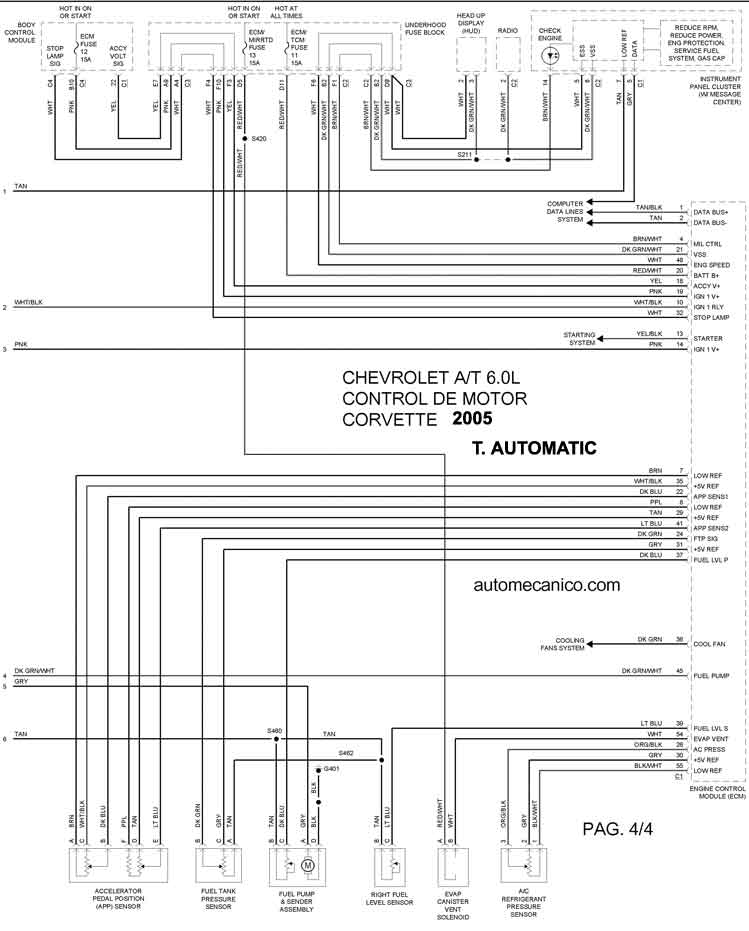

| 2005 | CORVETTE 6.0L V8 | CONTROL DEL MOTOR 4/4 |
| Año | CHEVROLET | CORVETTE 6.0L V8 T. Manual |

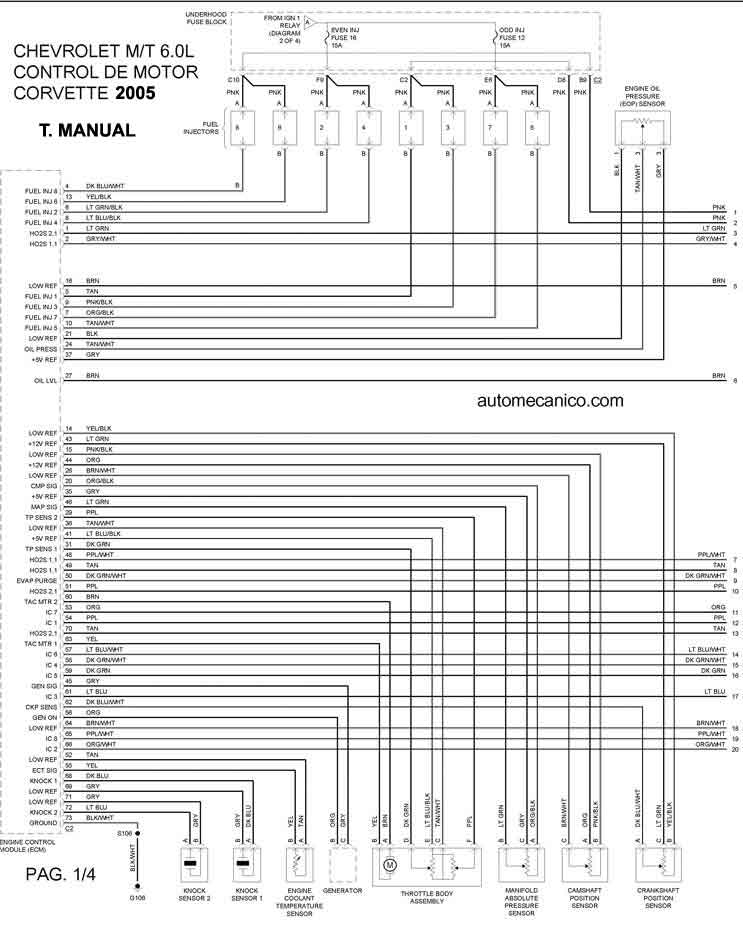

| 2005 | CORVETTE 6.0L V8 | CONTROL DEL MOTOR 1/4 |

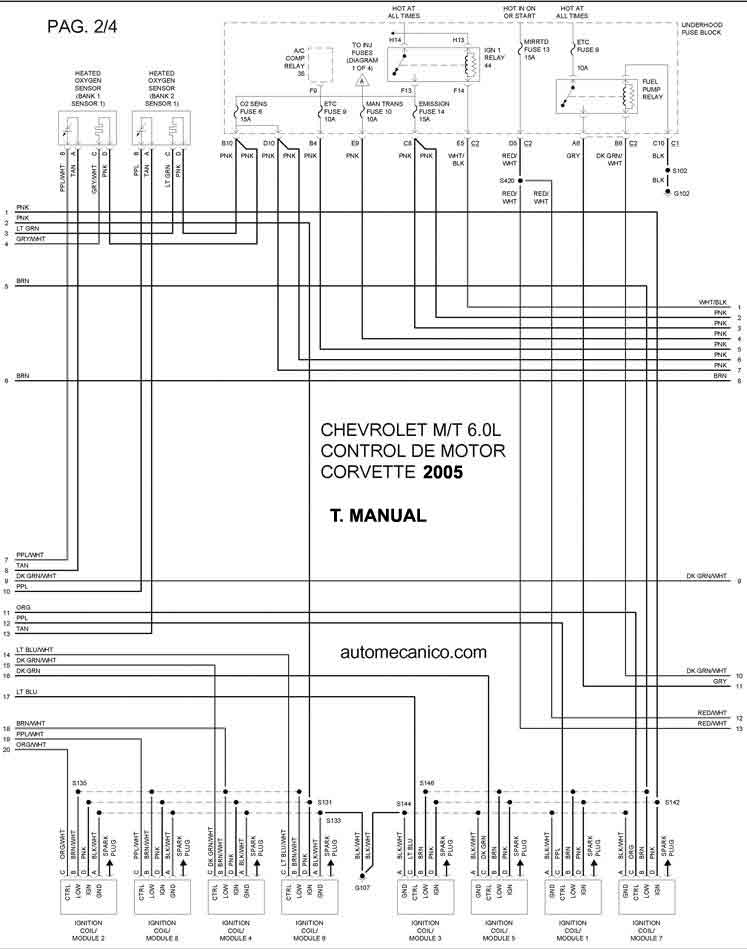

| 2005 | CORVETTE 6.0L V8 | CONTROL DEL MOTOR 2/4 |

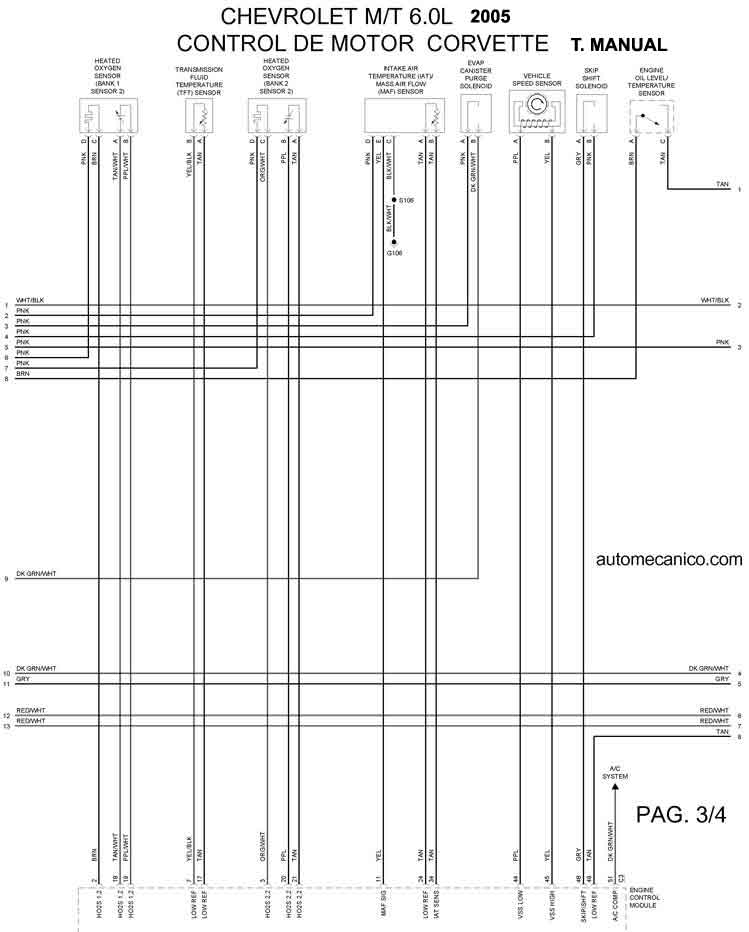

| 2005 | CORVETTE 6.0L V8 | CONTROL DEL MOTOR 3/4 |

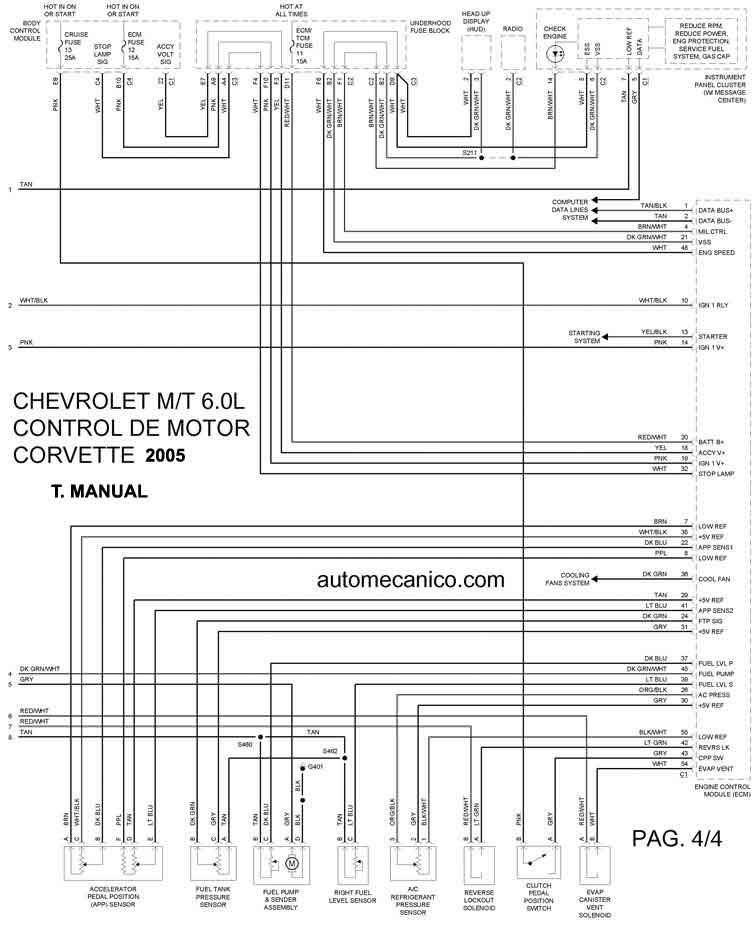

| 2005 | CORVETTE 6.0L V8 | CONTROL DEL MOTOR 4/4 |
