| Diagramas - Esquemas relacionado al circuito que controla el
funcionamiento del motor [Sensores y actuadores] Que es un Diagrama?, para que sirve un Diagrama electrico automotriz?. En Mecanica: Podemos describir un Diagrama, como: Grafica que representa la relacion entre los diferentes componentes de un conjunto, o sistema electrico, permitiendonos ubicar estos componentes dentro de un circuito. De esta manera se facilita el estudio y el analisis de un problema; y su posible solucion |
| DIAGRAMAS Control del motor / PLYMOUTH: Neon, Grand Voyager - 1998 - |
| Año | DODGE | NEON 2.0L 4 CIL. |

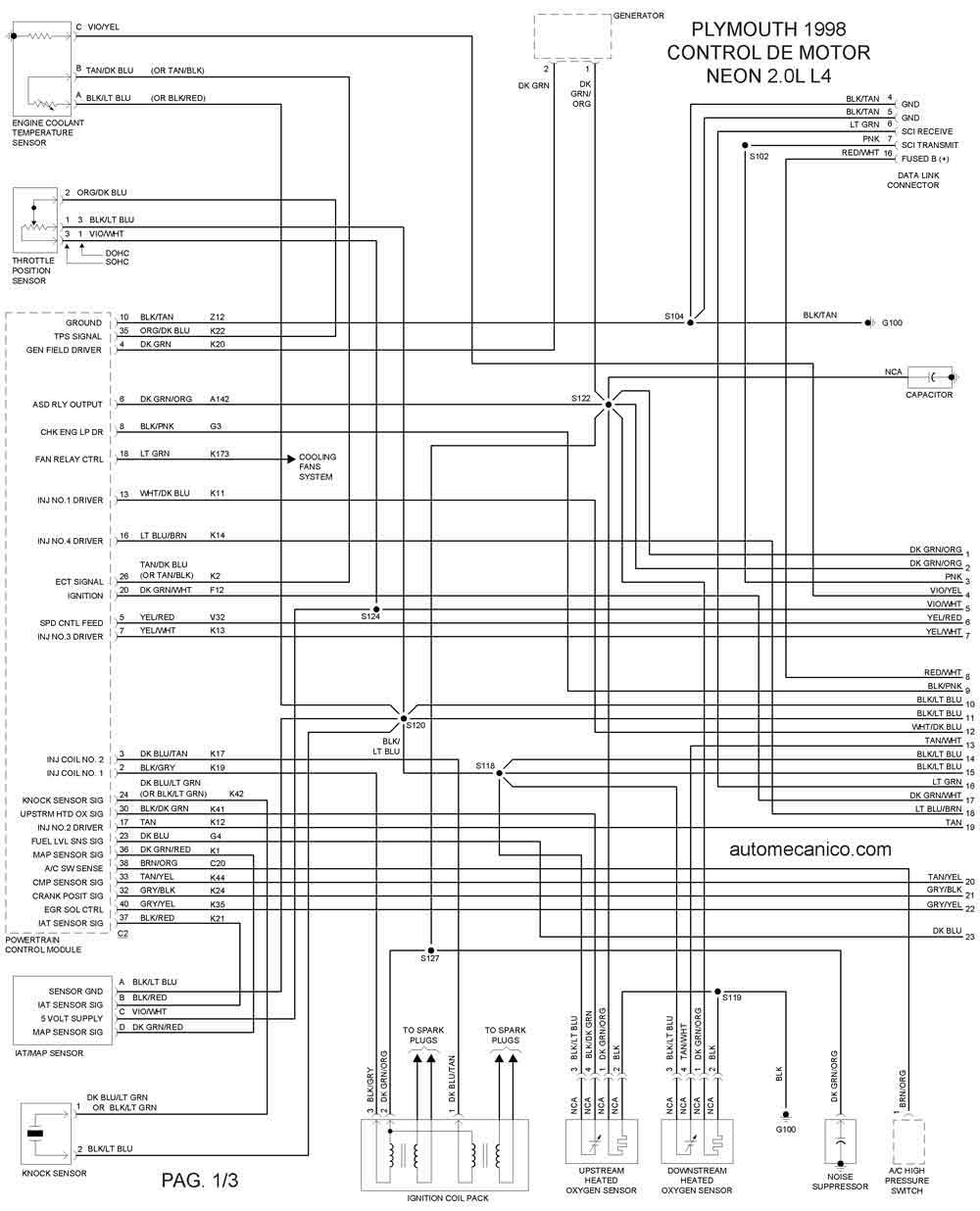

| 1998 | NEON 2.0L 4 CIL. | CONTROL DEL MOTOR 1/3 |

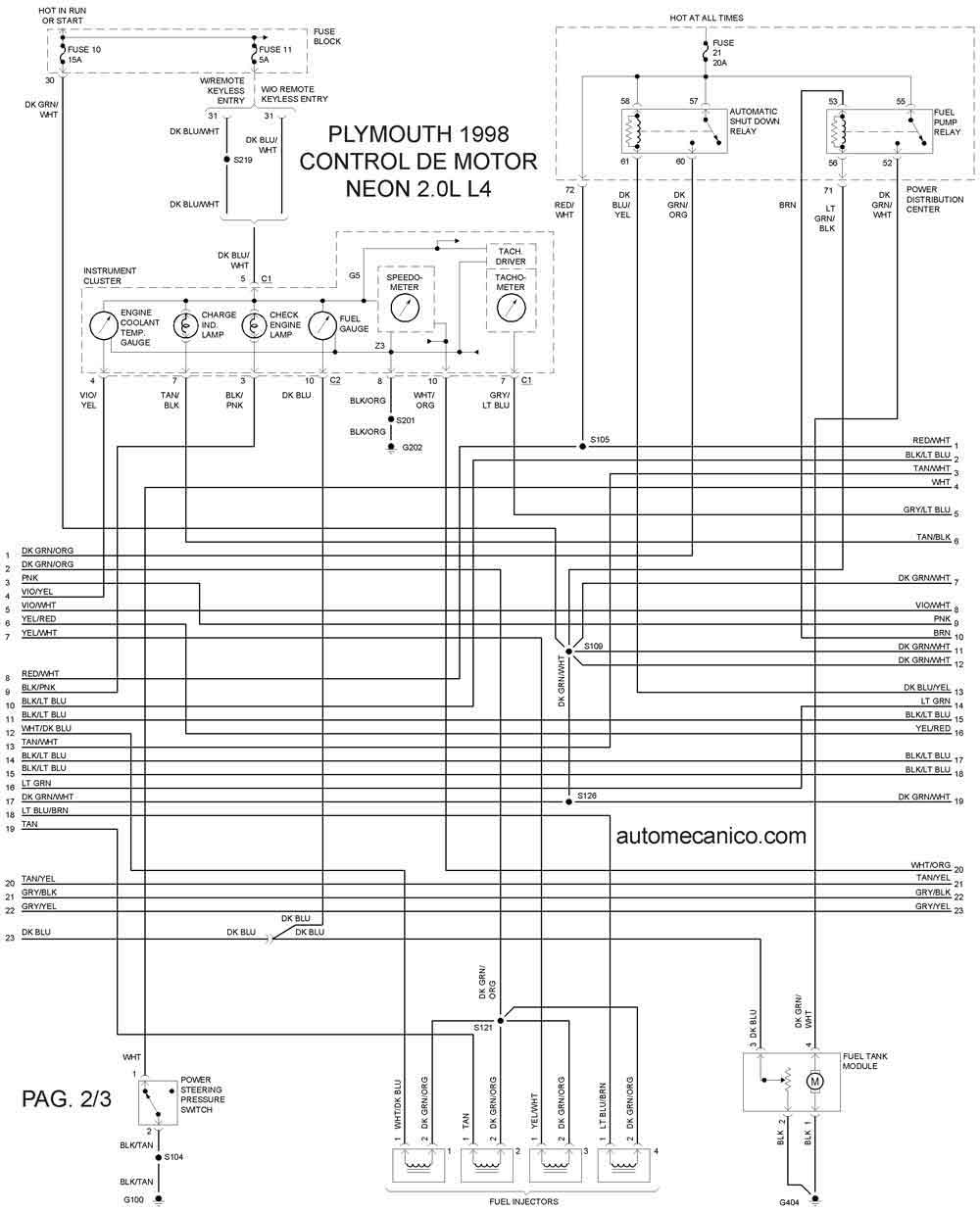

| 1998 | NEON 2.0L 4 CIL. | CONTROL DEL MOTOR 2/3 |
| 1998 | NEON 2.0L 4 CIL. | CONTROL DEL MOTOR 3/3 |
| Año | PLYMOUTH | VOYAGER 2.4L 4 CIL. |

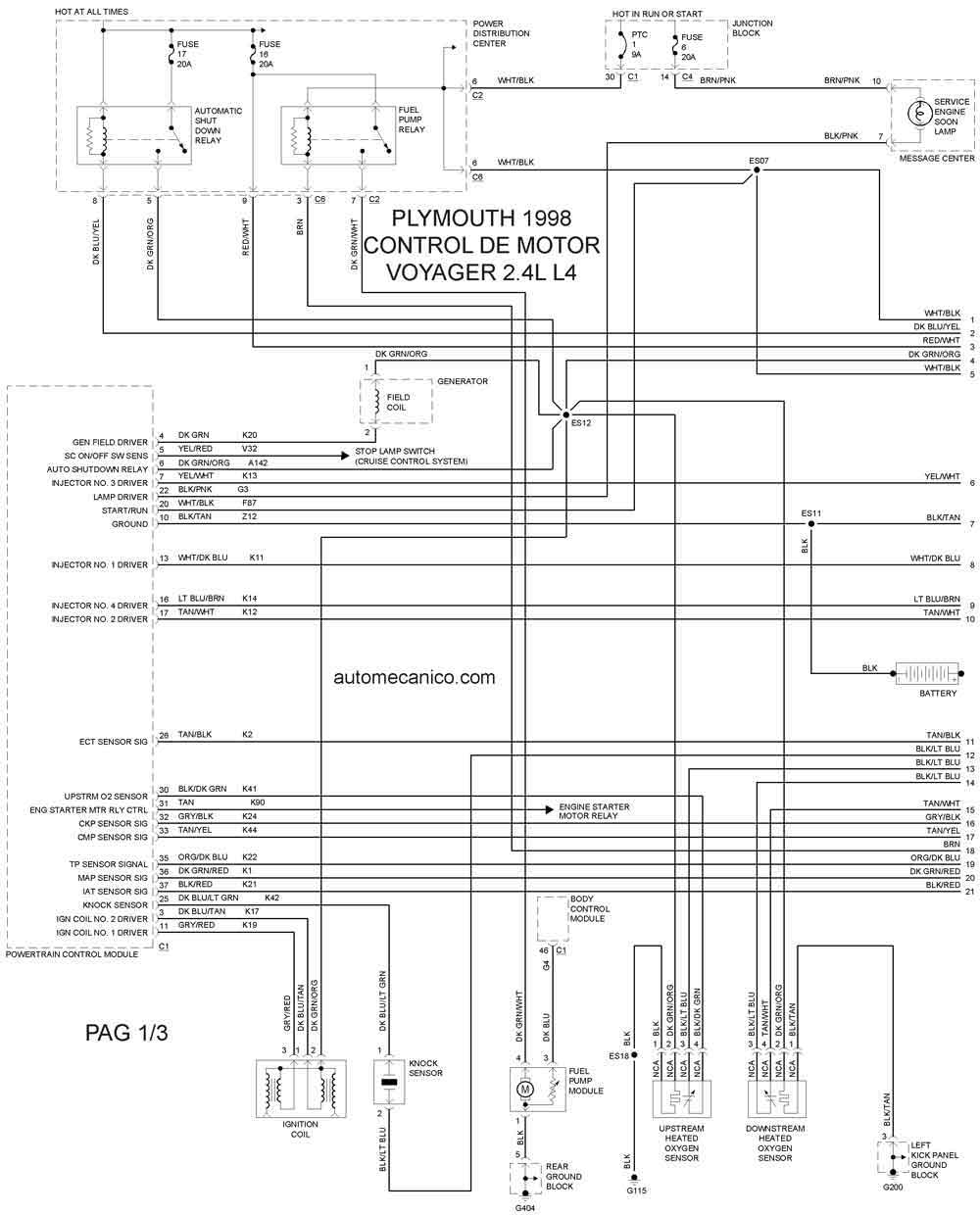

| 1998 | VOYAGER 2.4L 4 CIL | CONTROL DEL MOTOR 1/3 |

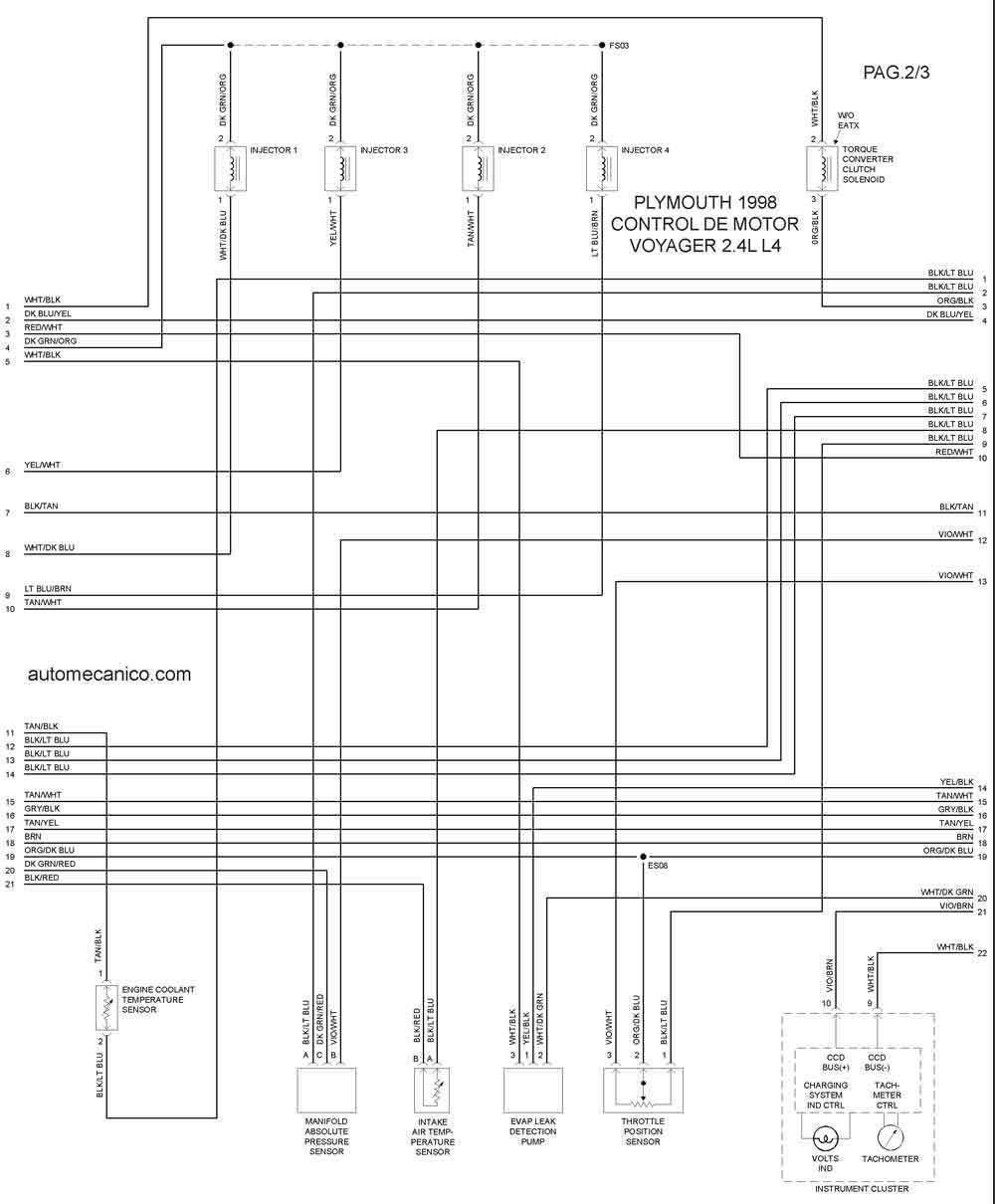

| 1998 | VOYAGER 2.4L 4 CIL | CONTROL DEL MOTOR 2/3 |

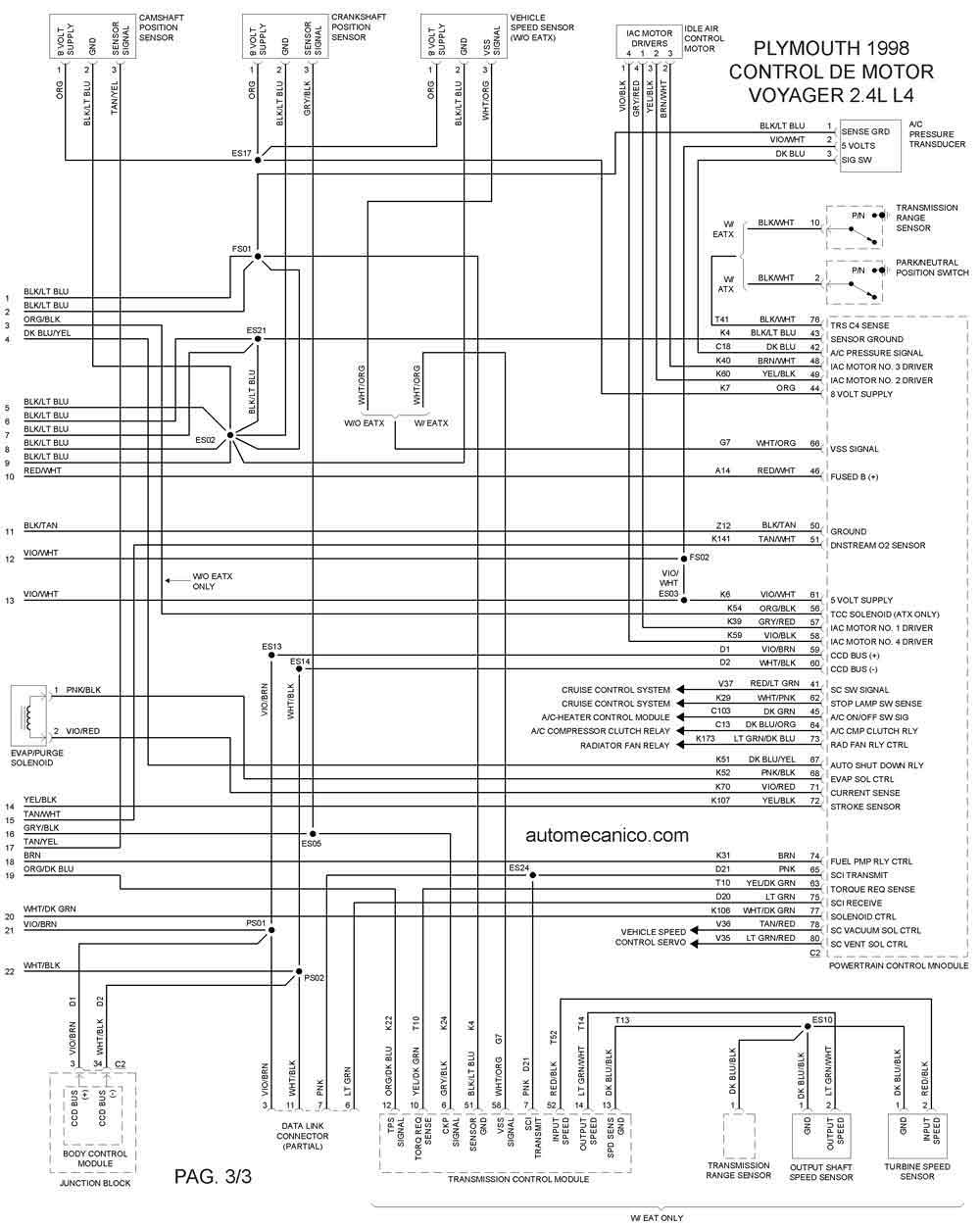

| 1998 | VOYAGER 2.4L 4 CIL | CONTROL DEL MOTOR 3/3 |
| Año | PLYMOUTH | VOYAGER 3.0L V6 |

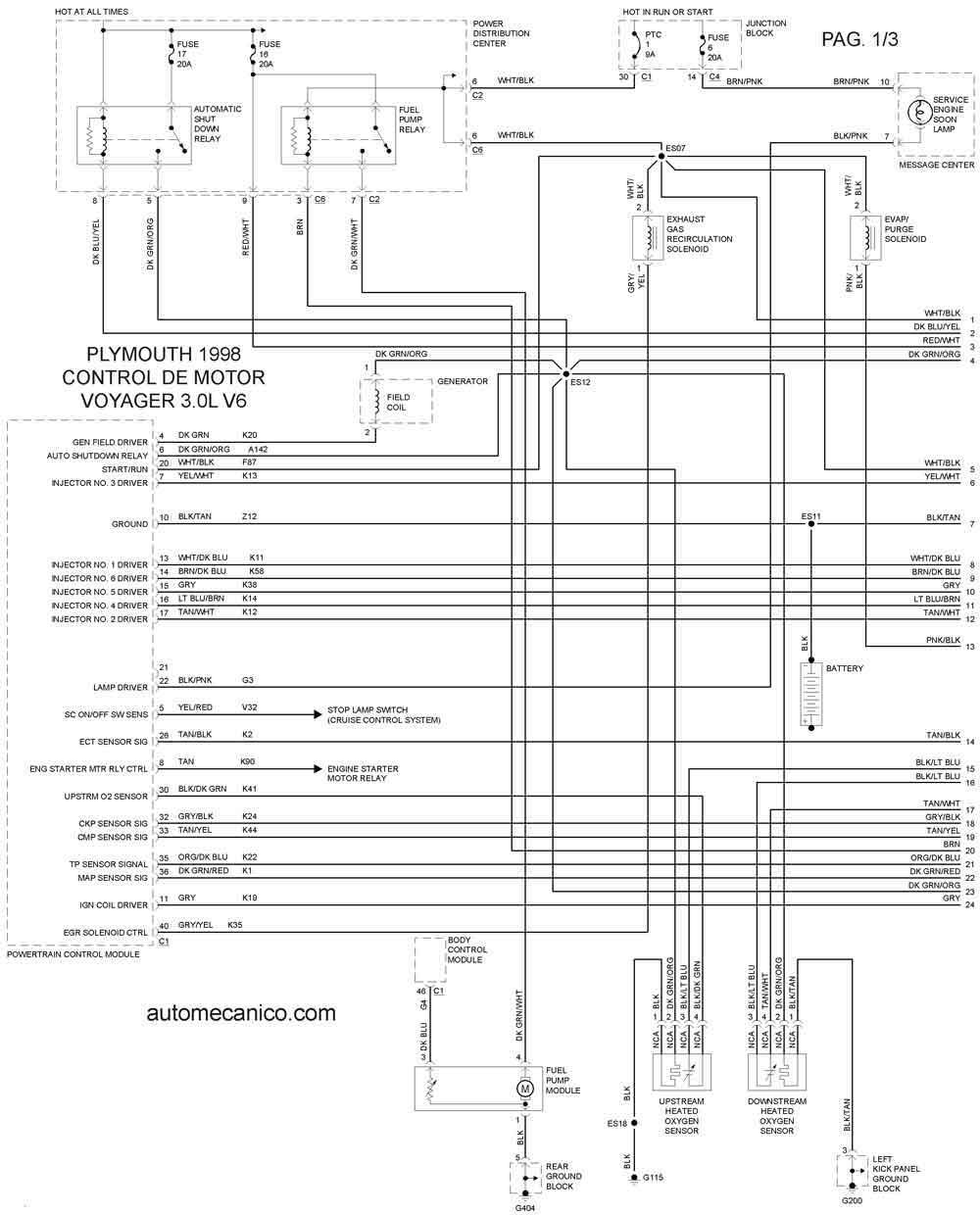

| 1998 | VOYAGER 3.0L V6 | CONTROL DEL MOTOR 1/3 |

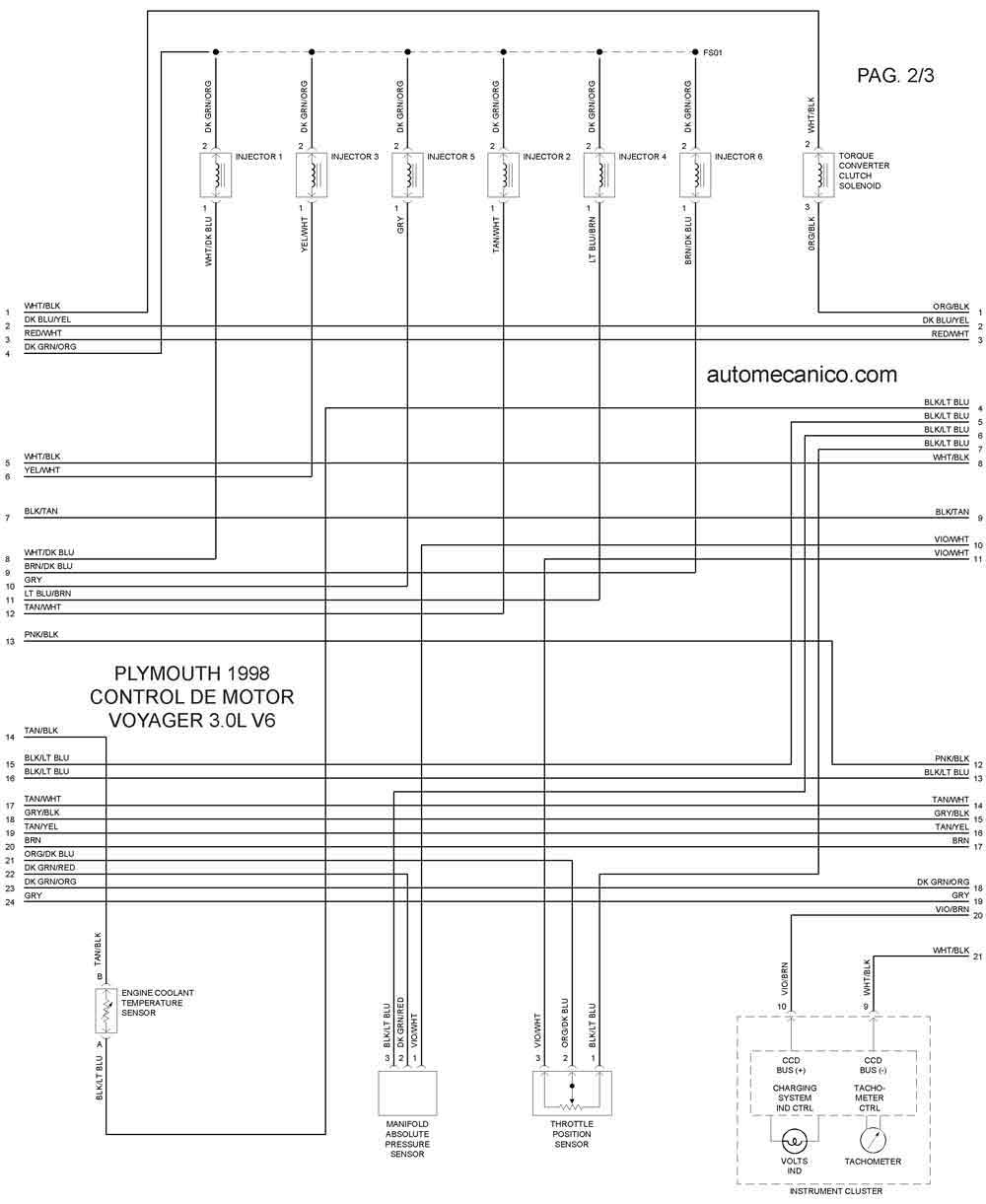

| 1998 | VOYAGER 3.0L V6 | CONTROL DEL MOTOR 2/3 |

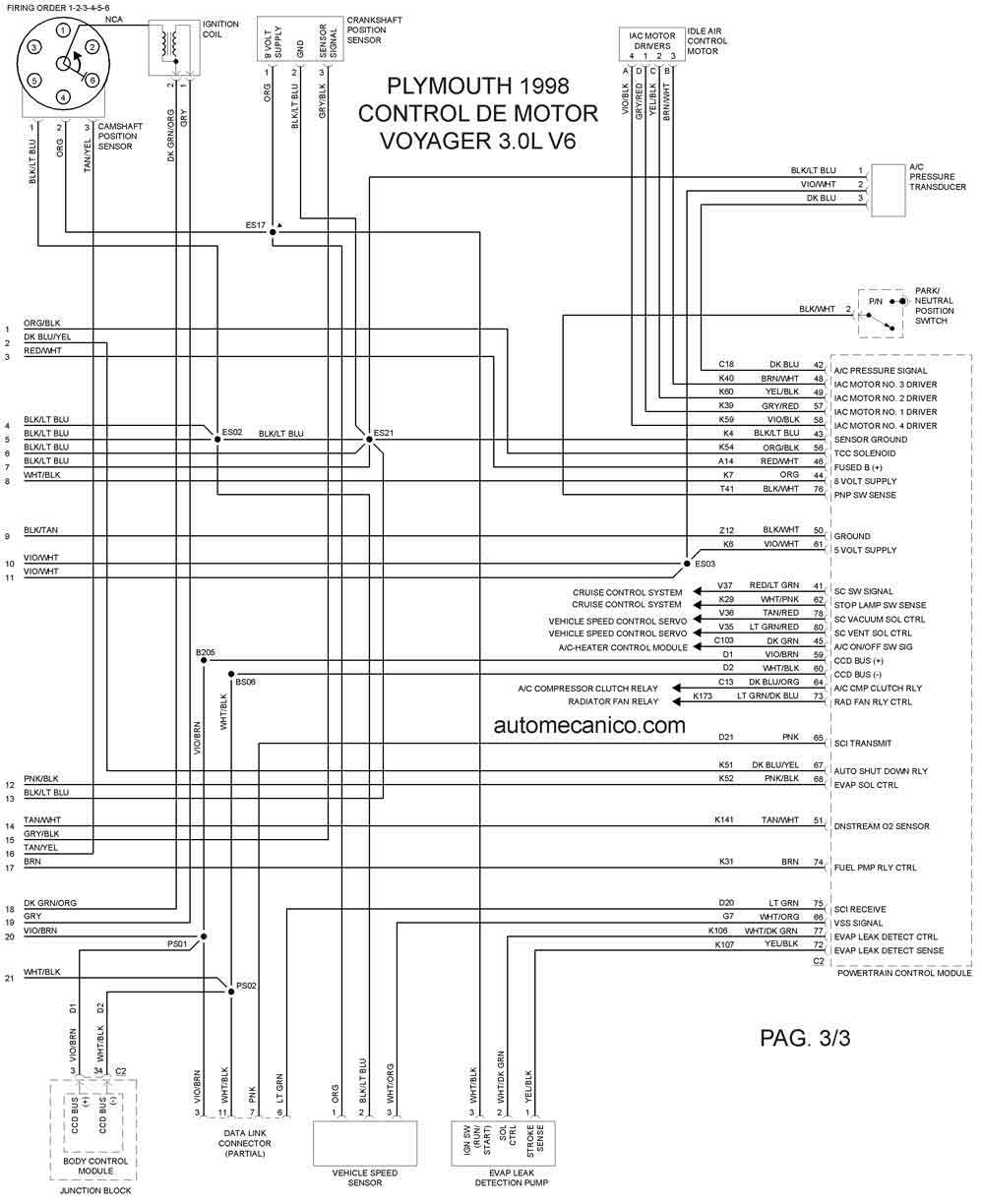

| 1998 | VOYAGER 3.0L V6 | CONTROL DEL MOTOR 3/3 |
| Año | PLYMOUTH | VOYAGER 3.3L V6 |

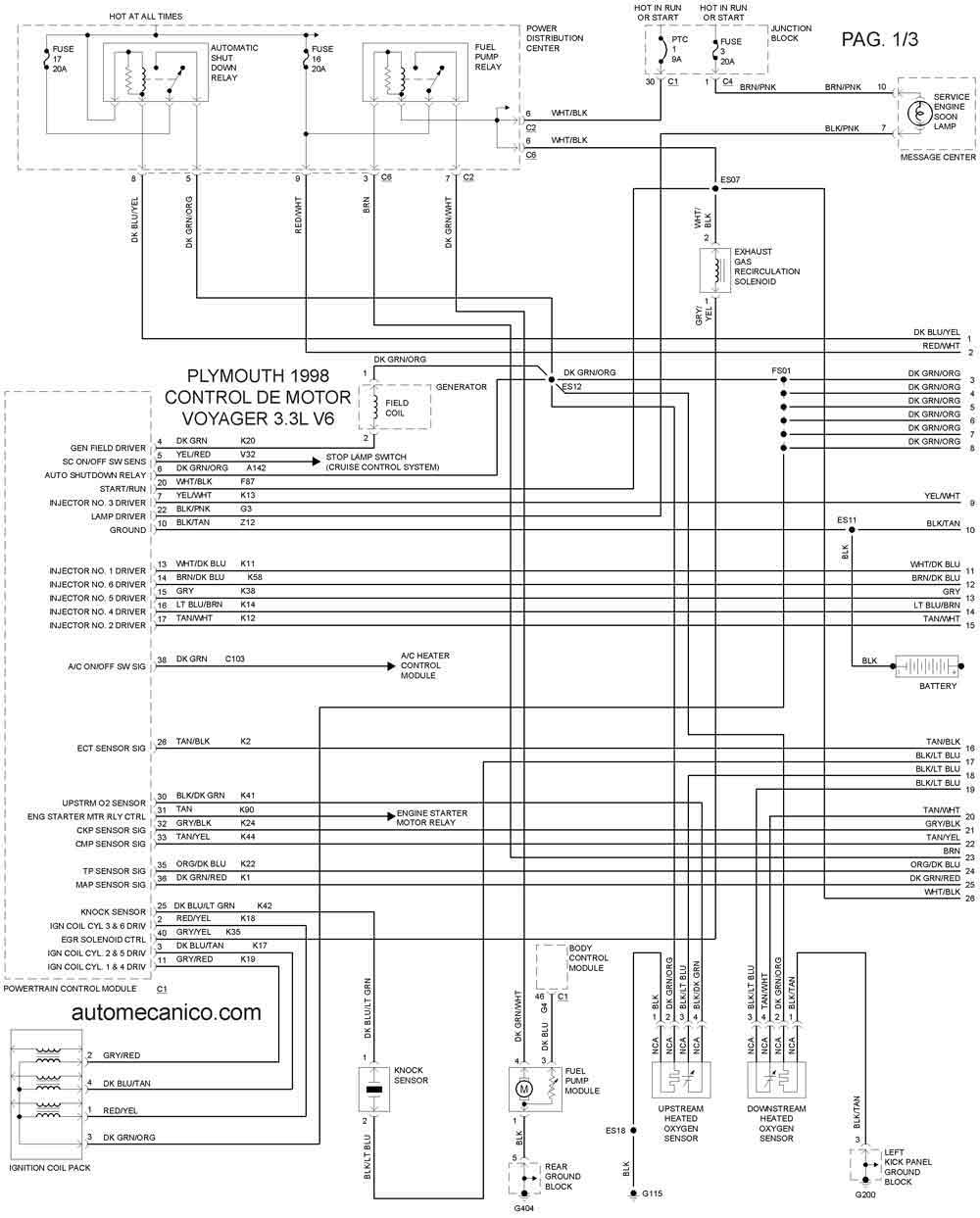

| 1998 | VOYAGER 3.3L V6 | CONTROL DEL MOTOR 1/3 |

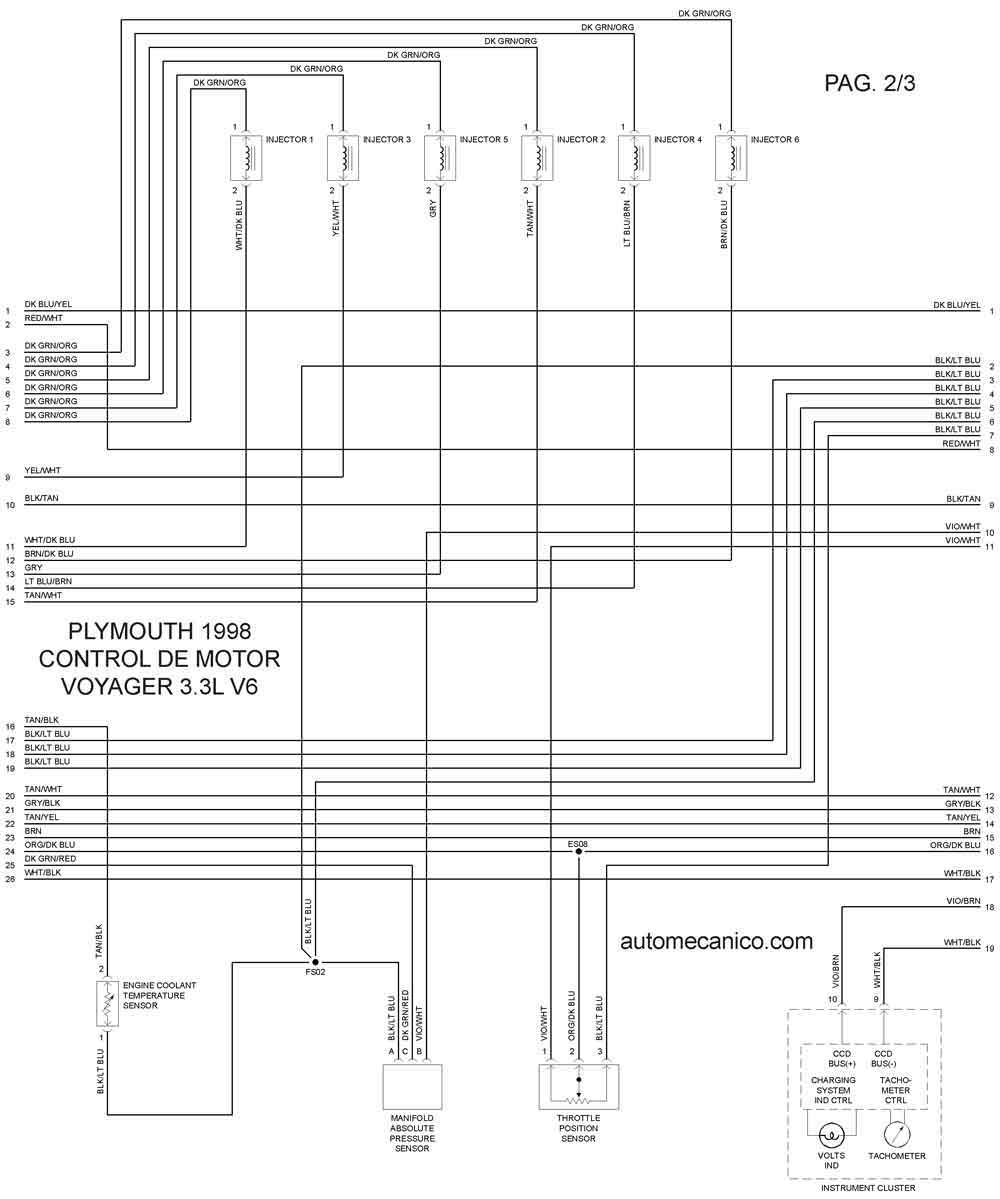

| 1998 | VOYAGER 3.3L V6 | CONTROL DEL MOTOR 2/3 |

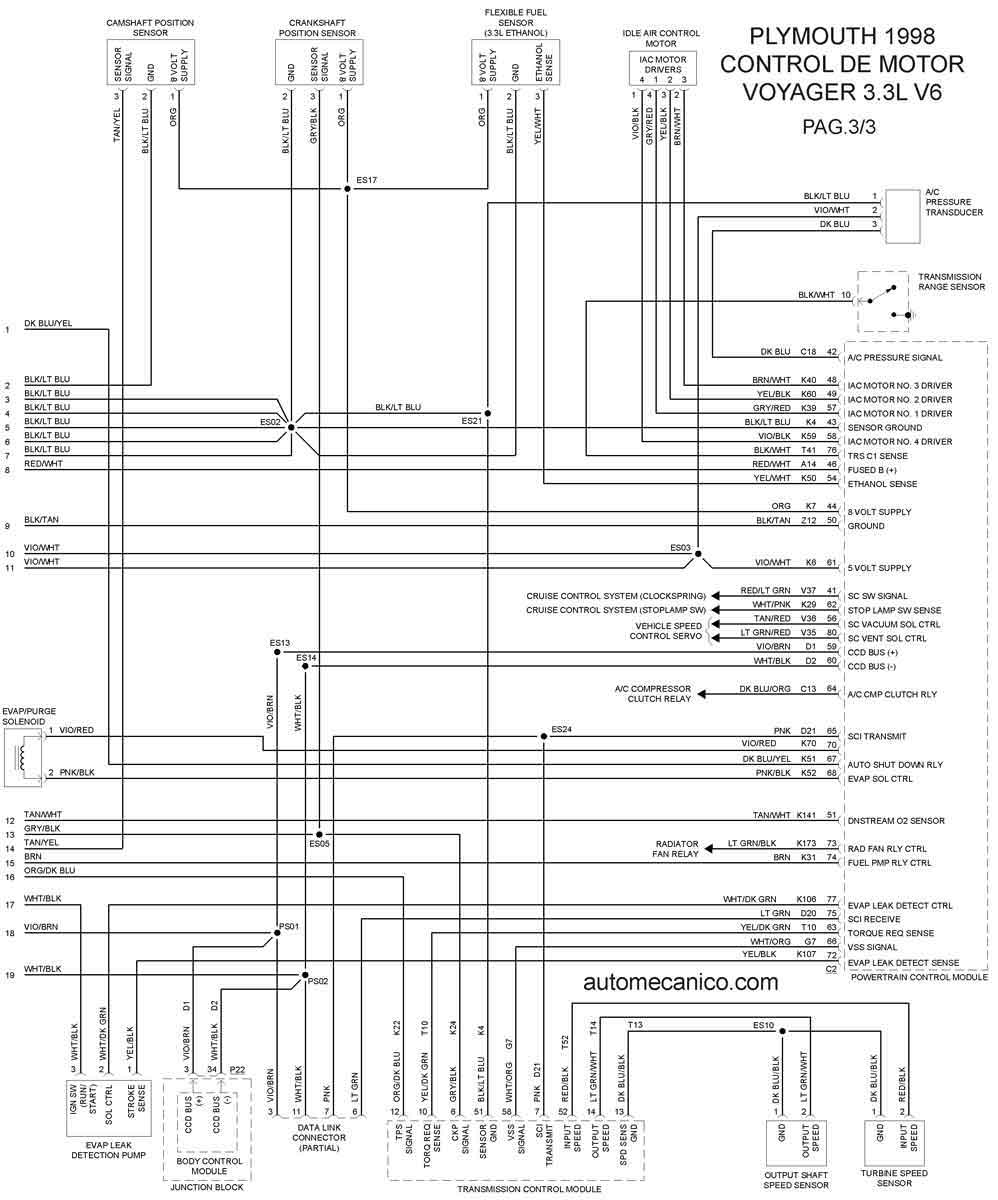

| 1998 | VOYAGER 3.3L V6 | CONTROL DEL MOTOR 3/3 |
