Diagramas CHEVROLET : Sistema Antirobo - Anti- Theft System - Circuito Electrico CHEVROLET 2000 - |
|
Que es un Diagrama?, para que sirve un Diagrama electrico automotriz? En Mecanica: Podemos describir un Diagrama, como: |
| Grafica que representa la relacion entre los diferentes componentes de
un conjunto, o sistema electrico.....permitiendonos ubicar estos componentes
dentro de un circuito. De esta manera se facilita el estudio, y el analisis de un problema; y su posible solucion. |
 |
| Los Diagramas, listados abajo, se refieren unicamente al Circuito electrico que involucra: El sistema antirobo - [Anti - Theft System] CHEVROLET 2000 - INDICE - |
| MODELO | DIAGRAMA |
| SUBURBAN 1500 | |

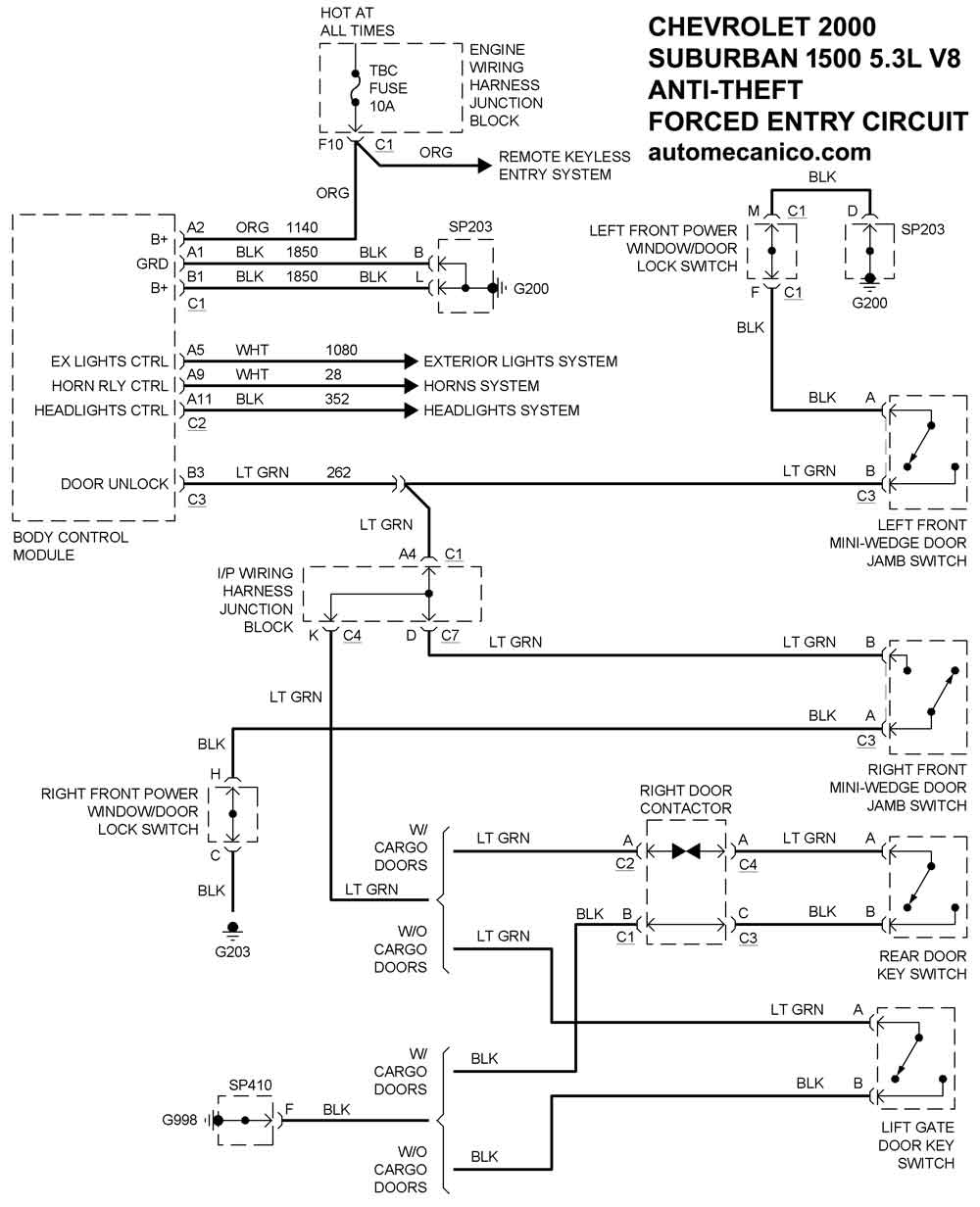

| 5.3L V8 Cil. | SIST. ANTIROBO Forced Entry Circuit. |
| 5.3L V8 Cil. | SIST. ANTIROBO Pass-key Circuit. |
| SUBURBAN 2500 | |

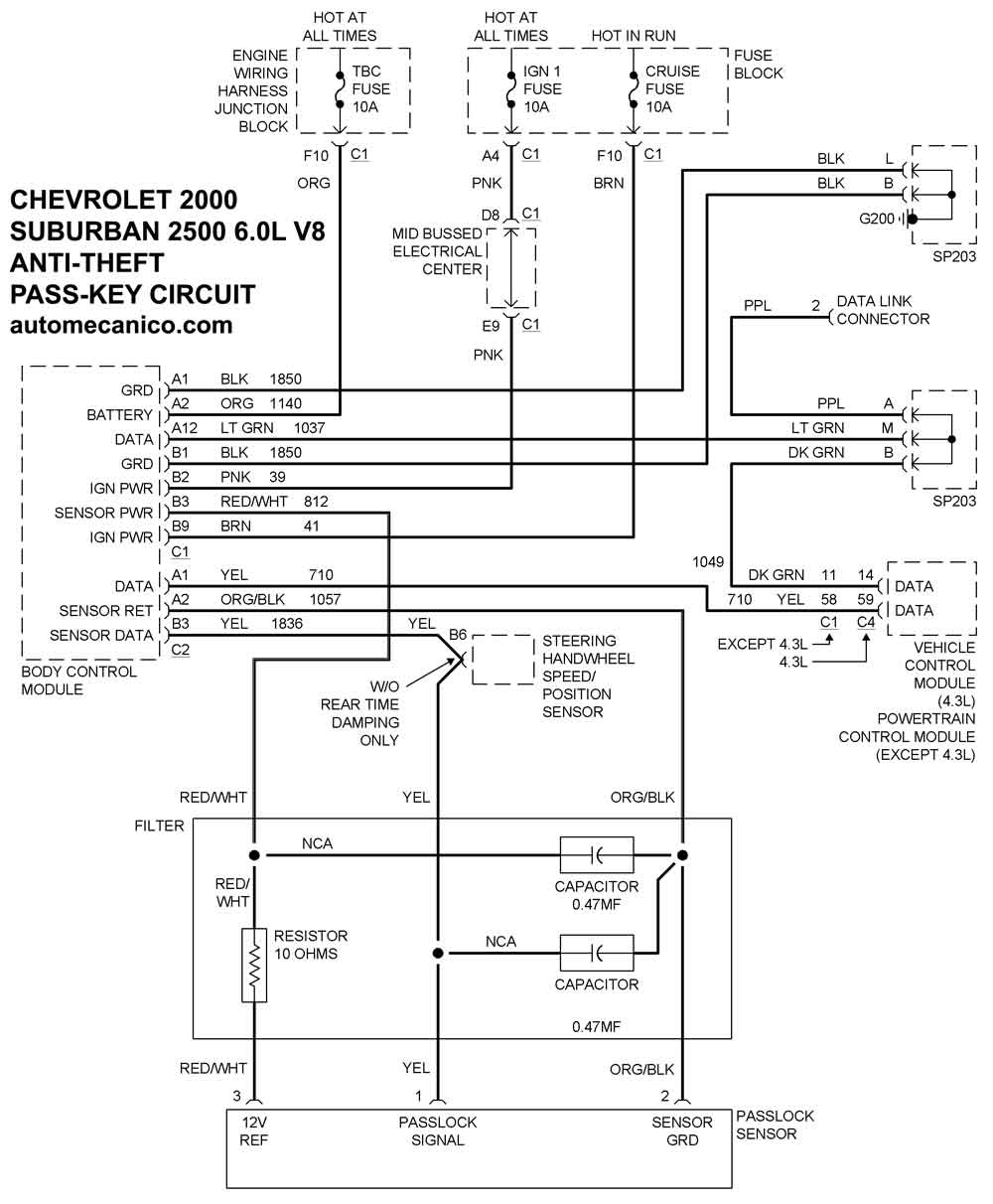

| 6.0L V8 Cil. | SIST. ANTIROBO Forced Entry Circuit. |
| 6.0L V8 Cil. | SIST. ANTIROBO Pass- key Circuit. |
| TAHOE | |
| 4.8L V8 Cil. | SIST. ANTIROBO Forced Entry Circuit. |
| 4.8L V8 Cil. | SIST. ANTIROBO Pass-key Circuit. |

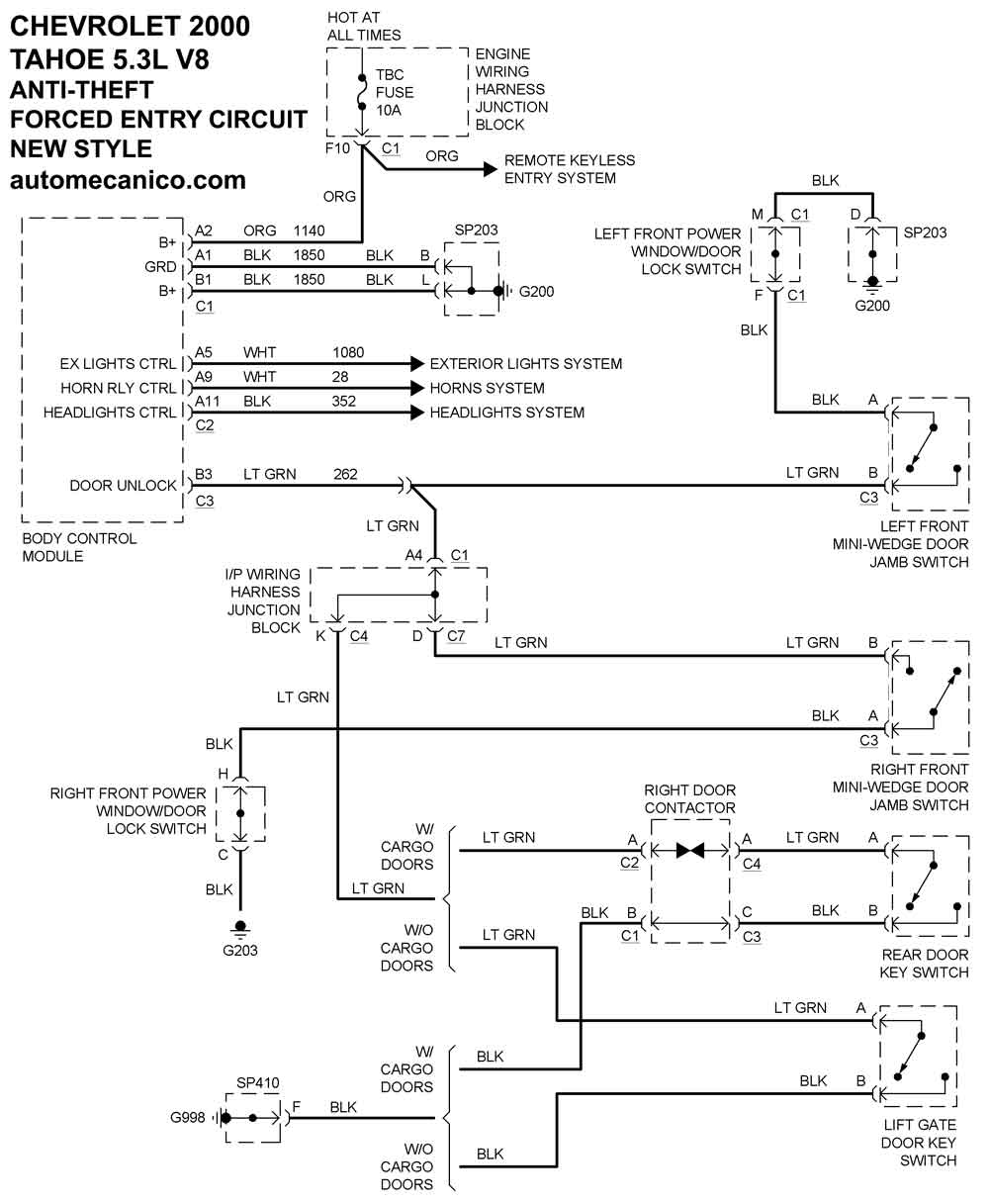

| 4.8L V8 Cil. | SIST. ANTIROBO Forced Entry Circuit. NEW STYLE |

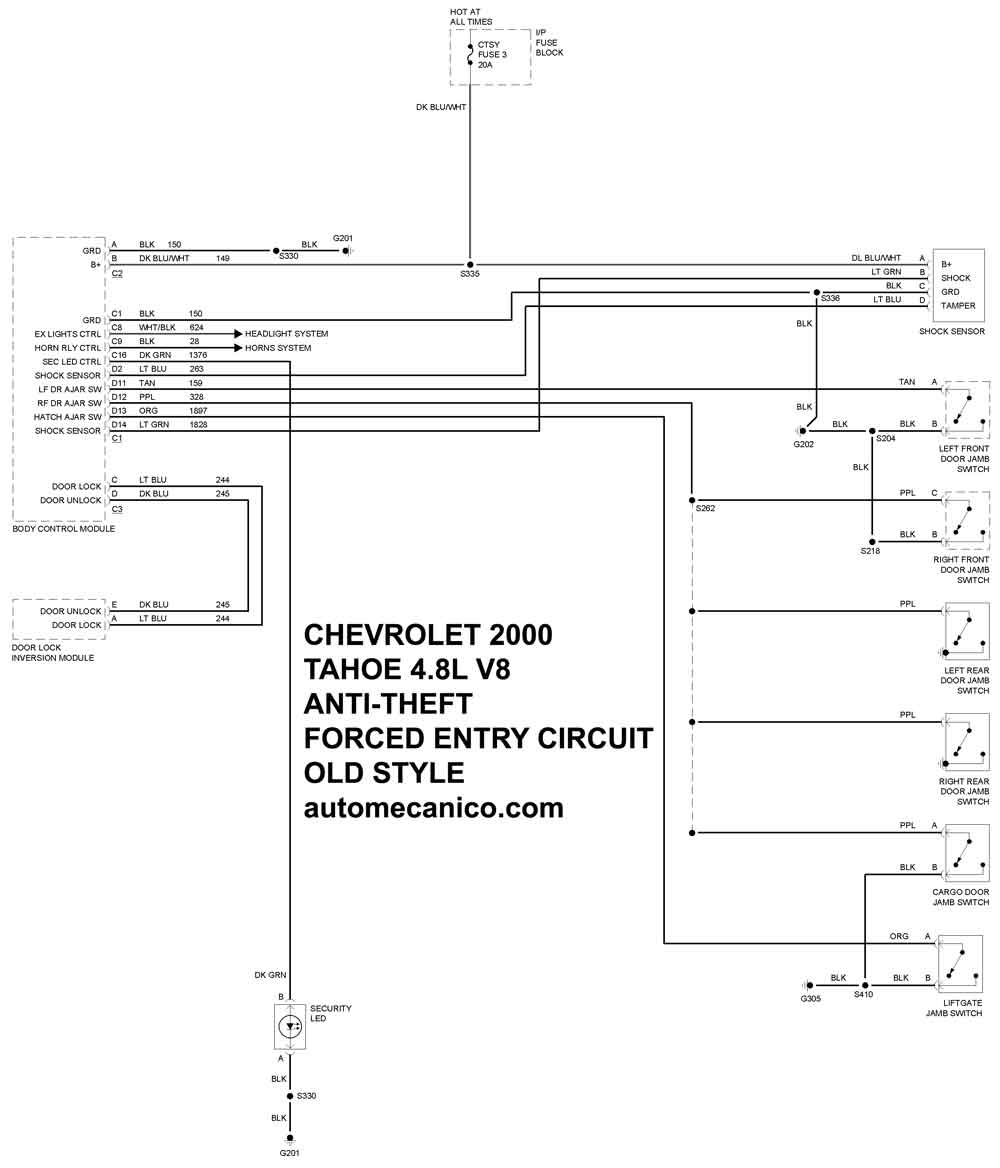

| 4.8L V8 Cil. | SIST. ANTIROBO Forced Entry Circuit.OLD TYLE |

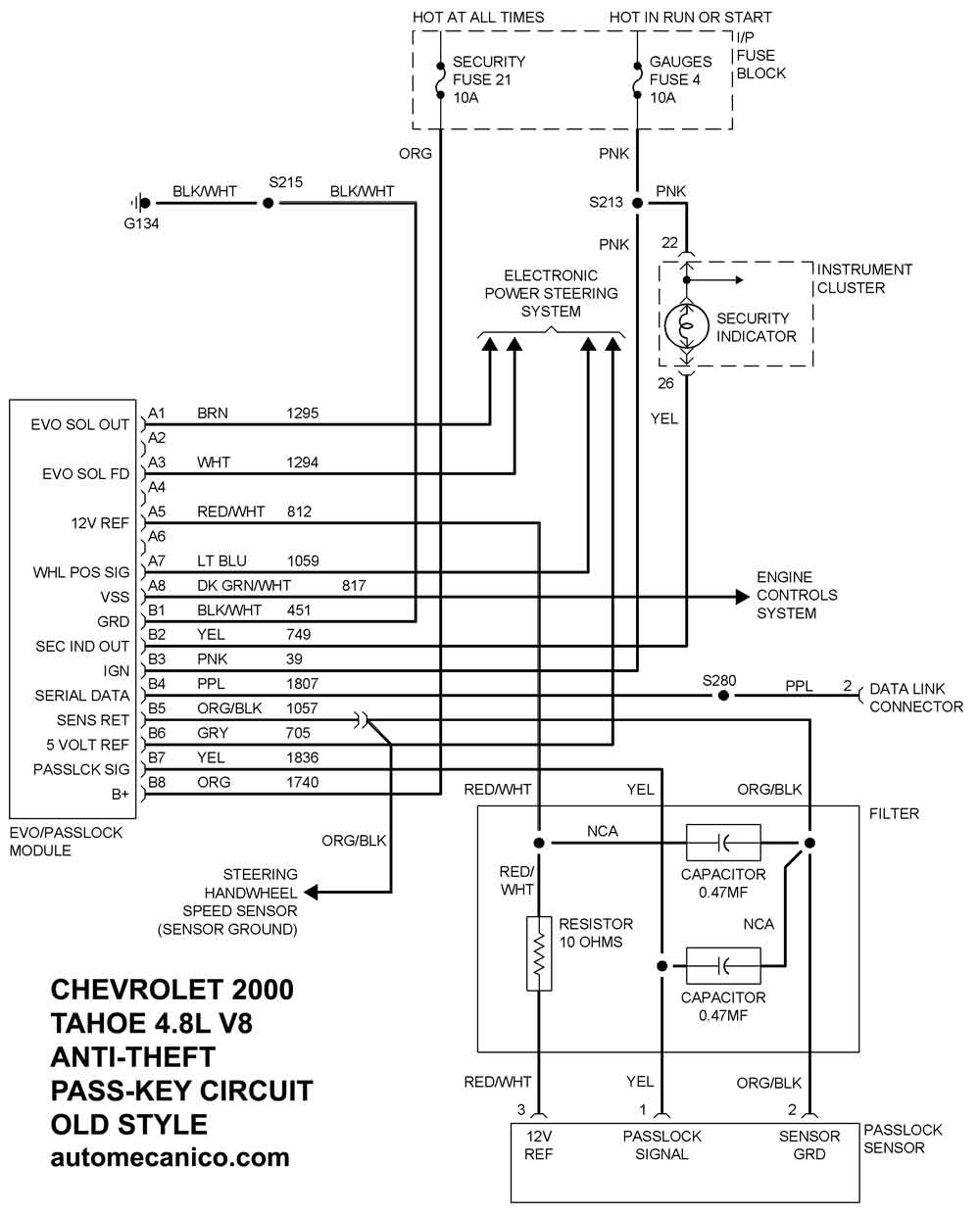

| 4.8L V8 Cil. | SIST. ANTIROBO PASS-KEY OLD TYLE |
| 4.8L V8 Cil. | SIST. ANTIROBO PASSLOCK CIRCUIT NEW STYLE |
| 5.3L V8 Cil. | SIST. ANTIROBO Forced Entry Circuit. NEW STYLE |
| 5.3L V8 Cil. | SIST. ANTIROBO Forced Entry Circuit.OLD TYLE |
| 5.3L V8 Cil. | SIST. ANTIROBO PASS-KEY OLD TYLE |

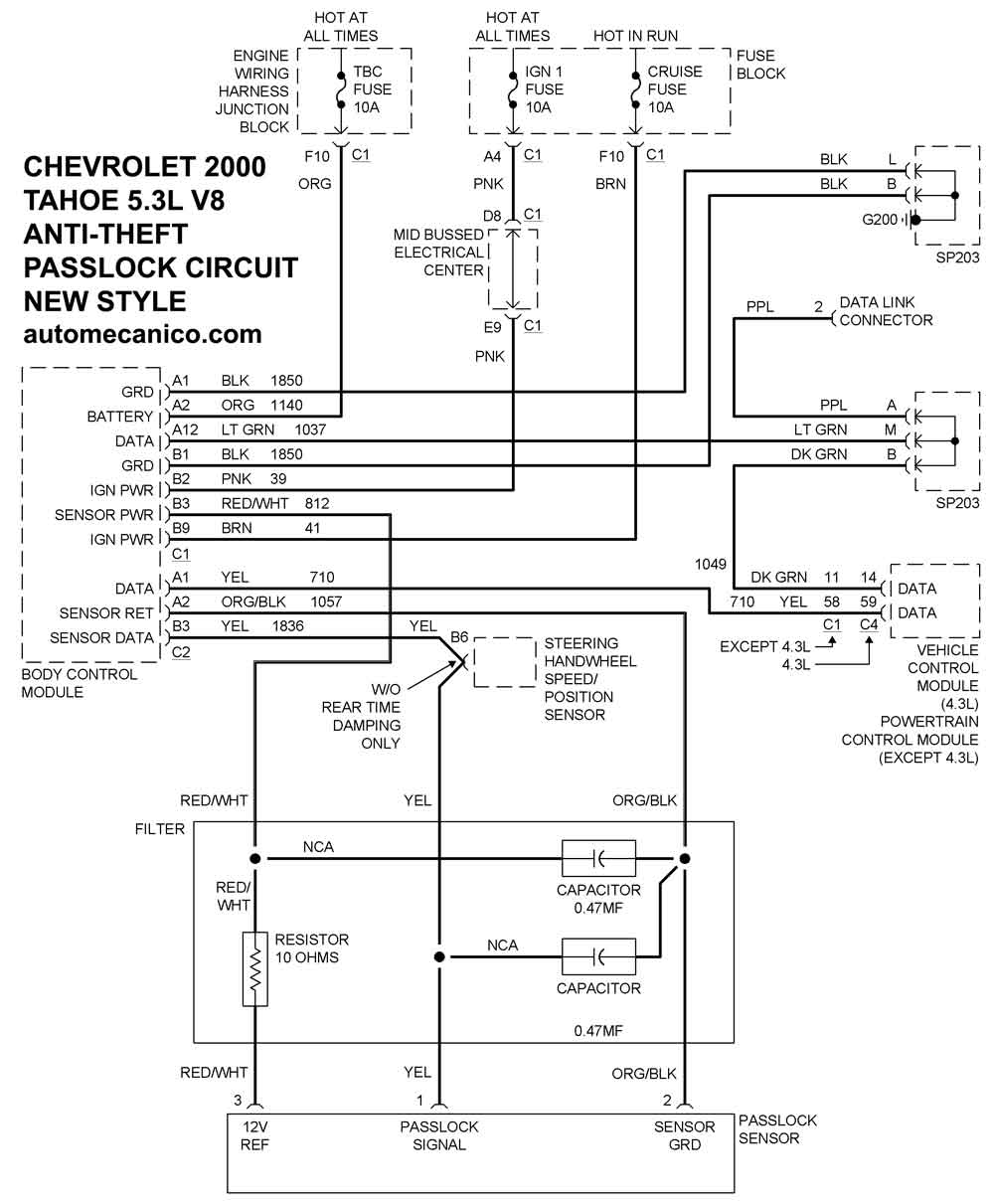

| 5.3L V8 Cil. | SIST. ANTIROBO PASSLOCK CIRCUIT NEW STYLE |
| 5.7L V8 Cil. | SIST. ANTIROBO Forced Entry Circuit. NEW STYLE |
| 5.7L V8 Cil. | SIST. ANTIROBO Forced Entry Circuit.OLD TYLE |
| 5.7L V8 Cil. | SIST. ANTIROBO PASS-KEY OLD TYLE |
| 5.7L V8 Cil. | SIST. ANTIROBO PASSLOCK CIRCUIT NEW STYLE |
| VENTURE | |
| 3.4L V6 Cil. | SIST. ANTIROBO Forced Entry Circuit. |

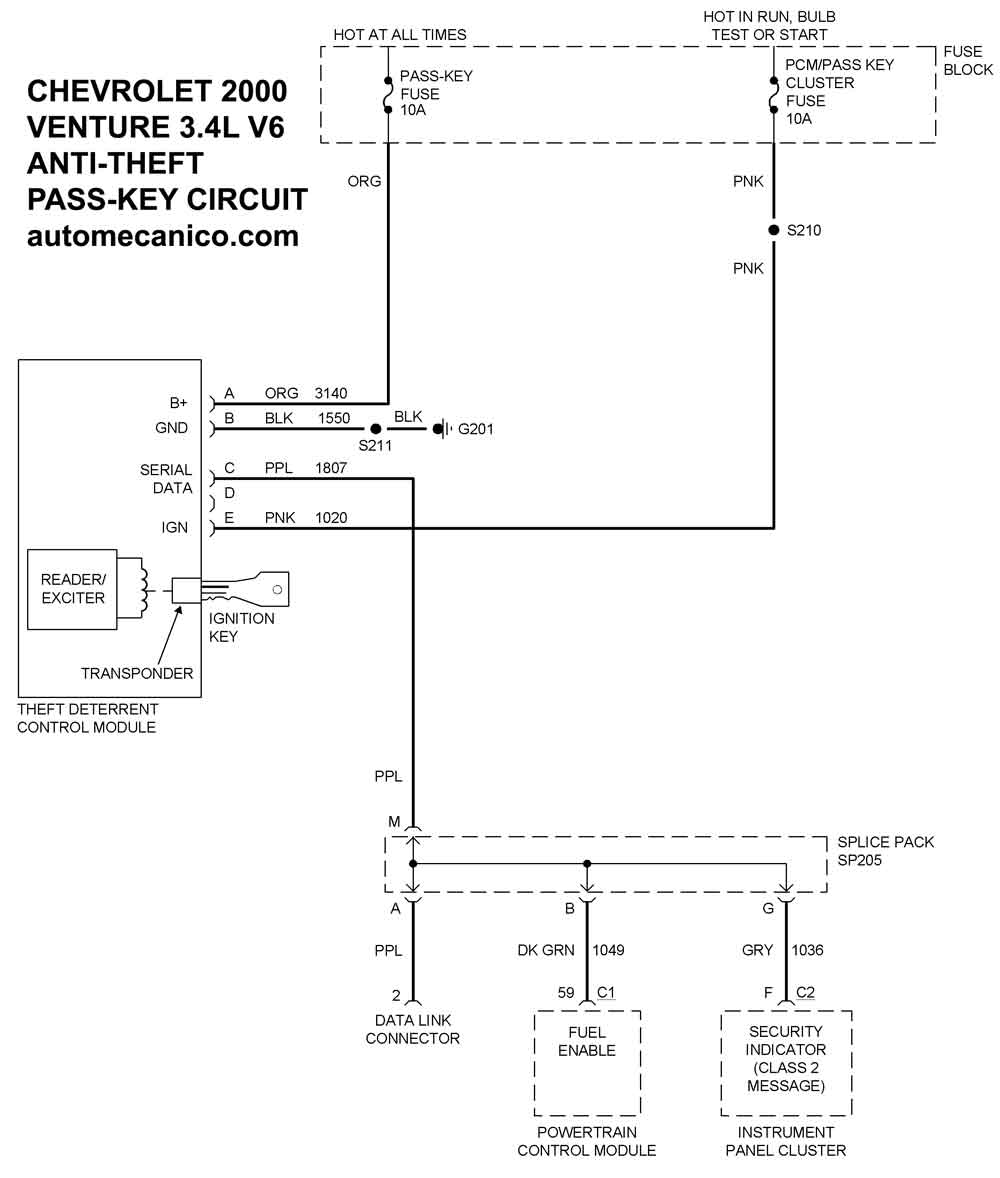

| 3.4L V6 Cil. | SIST. ANTIROBO Pass-key Circuit. |
